2700 lb. Round Painted Trailer Axles

1.90" Round, Black E-Coated Trailer Axle
Axles are shipped with spindle nuts, cotter pins, and spring seats. The also feature a Tough Epoxy Coat Finish and S.S. wear sleeves.It is the customer's responsibility to weld spring seats to your trailers specifications. No brake flange attached. Wheel Hubs and bearings sold separately.
Spindle size is 1-1/16" x 1-1/16"

CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up.

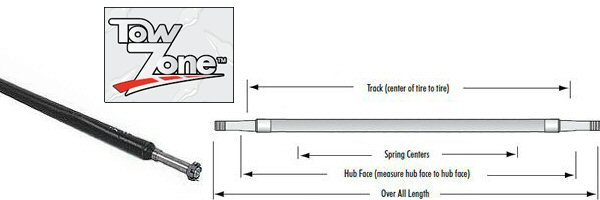

Track Length = distance from hub face to hub face

Trailer Parts Tech Tip: HOW TO MEASURE & SELECT THE PROPER AXLE

Quantity		Price
Qty:	49" Round Tube Straight Trailer Axle (2700 lb.) #50244 Stock# 5257164 Track Length = 49" Overall = 53.5" Spring Center = 33"-39" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50244	$106.00
Qty:	51" Round Tube Straight Trailer Axle (2700 lb.) #50237 Stock# 5257158 Track Length = 51" Overall = 55.5" Spring Center = 35"-41" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50237	$106.00
Qty:	53" Round Tube Straight Trailer Axle (2700 lb.) #50229 Stock# 5257153 Track Length = 53" Overall = 57.5" Spring Center = 37"-43" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50229	$106.00
Qty:	55" Round Tube Straight Trailer Axle (2700 lb.) #50231 Stock# 5257154 Track Length = 55" Overall = 59.5" Spring Center = 39"-45" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50231	$106.00
Qty:	56" Round Tube Straight Trailer Axle (2700 lb.) #50233 Stock# 5257156 Track Length = 56" Overall = 60.5" Spring Center = 40"-46" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50233	$106.00
Qty:	58" Round Tube Straight Trailer Axle (2700 lb.) #50232 Stock# 5257155 Track Length = 58" Overall = 62.5" Spring Center = 42"-48" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50232	$106.00
Qty:	59" Round Tube Straight Trailer Axle (2700 lb.) #50227 Stock# 5257151 Track Length = 59" Overall = 63.5" Spring Center = 43"-49" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50227	$111.00
Qty:	61" Round Tube Straight Trailer Axle (2700 lb.) #50228 Stock# 5257152 Track Length = 61" Overall = 65.5" Spring Center = 45"-51" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50228	$113.00
Qty:	63" Round Tube Straight Trailer Axle (2700 lb.) #50220 Stock# 5257147 Track Length = 63" Overall = 67.5" Spring Center = 47"-53" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50220	$117.00
Qty:	65" Round Tube Straight Trailer Axle (2700 lb.) #50226 Stock# 5257150 Track Length = 65" Overall = 69.5" Spring Center = 49"-55" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50226	$117.00
Qty:	67" Round Tube Straight Trailer Axle (2700 lb.) #50219 Stock# 5257146 Track Length = 67" Overall = 71.5" Spring Center = 51"-57" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50219	$117.00
Qty:	69" Round Tube Straight Trailer Axle (2700 lb.) #50222 Stock# 5257148 Track Length = 69" Overall = 73.5" Spring Center = 53"-59" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50222	$117.00
Qty:	71" Round Tube Straight Trailer Axle (2700 lb.) #50243 Stock# 5257163 Track Length = 71" Overall = 75.5" Spring Center = 55"-61" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50243	$117.00
Qty:	72" Round Tube Straight Trailer Axle (2700 lb.) #50238 Stock# 5257159 Track Length = 72" Overall = 76.5" Spring Center = 56"-62" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50238	$124.00
Qty:	74" Round Tube Straight Trailer Axle (2700 lb.) #50223 Stock# 5257149 Track Length = 74" Overall = 78.5" Spring Center = 58"-64" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50223	$126.00
Qty:	78" Round Tube Straight Trailer Axle (2700 lb.) #50240 Stock# 5257161 Track Length = 78" Overall = 82.5" Spring Center = 62"-68" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50240	$134.00
Qty:	80" Round Tube Straight Trailer Axle (2700 lb.) #50242 Stock# 5257162 Track Length = 80" Overall = 84.5" Spring Center = 64"-70" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50242	$134.00
Qty:	84" Round Tube Straight Trailer Axle (2700 lb.) #50239 Stock# 5257160 Track Length = 84" Overall = 88.5" Spring Center = 68"-74" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50239	$134.00
Qty:	88" Round Tube Straight Trailer Axle (2700 lb.) #50234 Stock# 5257157 Track Length = 88" Overall = 92.5" Spring Center = 72"-78" Spindle Size = 1-1/16" Universal application trailer axle, TIE DOWN ENGINEERING #50234	$134.00
