TIEDOWN 57" Square Galvanized Trailer Axle (2,000 lb.) #49538
Stock# 7125139

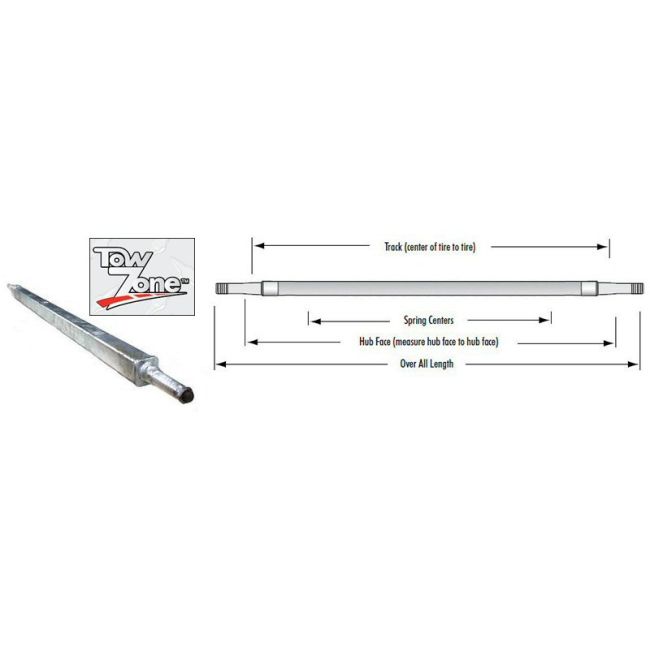

Overall Length = 62" Hub Face = 57" Spring Center = Recommended Range 42" - 47"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.
Universal replacement axle for trailers. Galvanized axle stock weldment only. Features a stainless steel wear sleeve and a super lube grease zerks. Wheel Hubs and bearings sold separately.
Axle Type: 2" x 2" Square - Galvanized
Load Rating: 2,000 lbs.
Overall Length: 62" End of Spindle to End of Spindle
Spring Center: Recommended 42" - 47"
Hub Face: 57"
Hub Type: 4 or 5 bolt (Not Included)
Spindle Size: 1-1/16" x 1-1/16"
Camber: 1° Per Side Welded at Spindles
Note: Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes to the trailers specs. Axles are non-returnable once holes have been drilled.
Product Name | TIEDOWN 57" Square Galvanized Trailer Axle (2,000 lb.) #49538 |
---|
