TIEDOWN 75" Square Galvanized Trailer Axle (2,000 lb.) #49545

Rating:
90 % of 100

Stock# 7125146

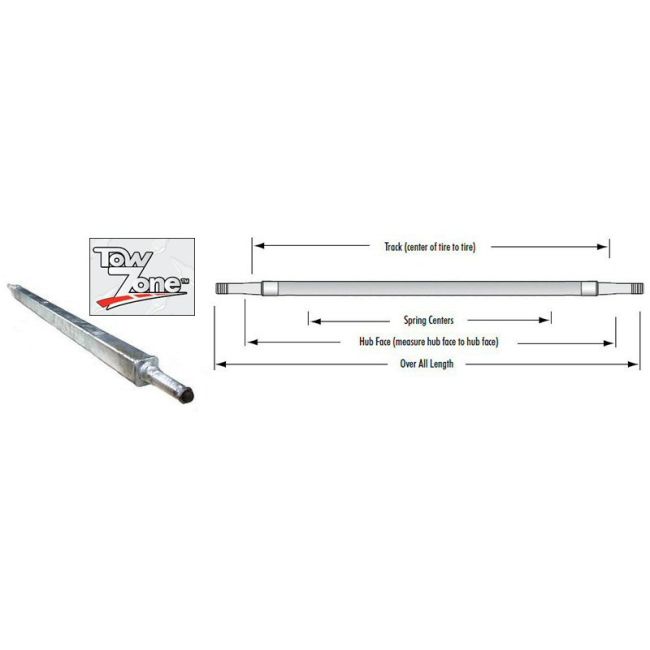

Overall Length = 80" Hub Face = 75" Spring Center = Recommended Range 60" - 65"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.

$179.00
SKU
7125146

Universal replacement axle for trailers. Galvanized axle stock weldment only. Features a stainless steel wear sleeve and a super lube grease zerks. Wheel Hubs and bearings sold separately.

Axle Type: 2" x 2" Square - Galvanized
Load Rating: 2,000 lbs.
Overall Length: 80" End of Spindle to End of Spindle
Spring Center: Recommended 60" - 65"
Hub Face: 75"
Hub Type: 4 or 5 bolt (Not Included)
Spindle Size: 1-1/16" x 1-1/16"
Camber: 1° Per Side Welded at Spindles

Note: Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes to the trailers specs. Axles are non-returnable once holes have been drilled.



Brand
Dexter Marine
Manufacturer Part Number
49545
