ROCKWELL 93" Square Drop Center Galvanized Trailer Axle (3,500 lb.)

Stock# 7108630

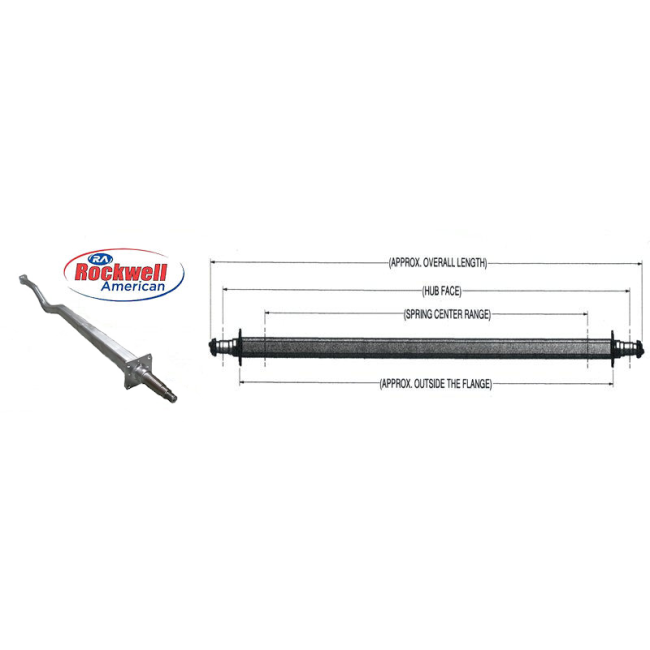

Overall Length = 98" Hub Face = 93" Spring Center = Recommended Range 75.25" - 79.25"
Brake Flange = 87" Axle weldment only, hubs & bearings sold separately.

$267.00
SKU
7108630

Rockwell American universal replacement axle for trailers. Galvanized axle stock weldment only. Features a stainless steel wear sleeve and a super lube grease zerks. Wheel Hubs and bearings sold separately.

Axle Type: 2" x 2" Square Drop Center- Galvanized
Load Rating: 3,500 lbs.
Overall Length: 98" End of Spindle to End of Spindle
Spring Center: Recommended 75.25" - 79.25"
Hub Face: 93"
Brake Flange (Outside): 87"
Hub Type: 5 bolt (Not Included)
Spindle Size: 1-3/8" x 1-1/16"
Camber: 1° Per Side Welded at Spindles

Note: Axles are shipped without spring seat holes or drain hole. It is the customer's responsibility to drill spring holes to your trailers specs and a 5/16" drain hole. Axles are non-returnable once holes have been drilled.

Brand
Rockwell American
Manufacturer Part Number
DM3584FZL0930000001
