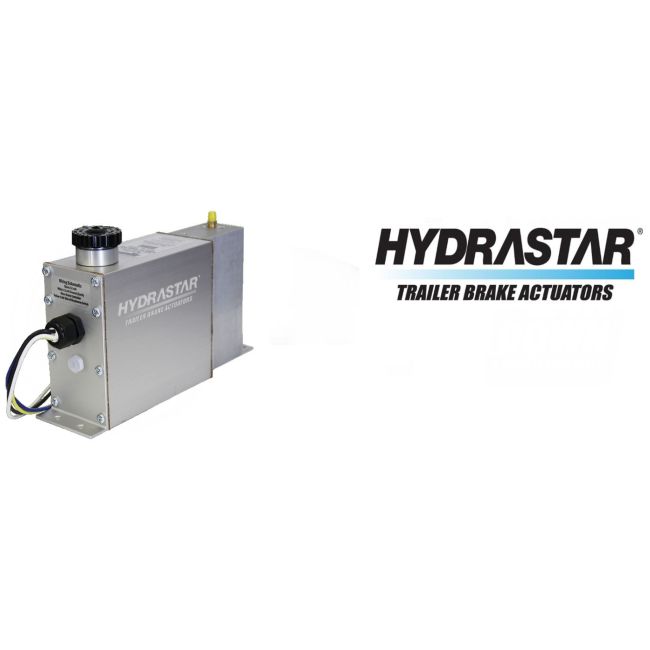

CARLISLE Hydrastar™ 1200 PSI Electric / Hydraulic Actuator #HBA-12

Be the first to review this product

The HydraStar™ line of trailer mounted electric over hydraulic brake actuators are unlike mechanical surge actuators, the output from the HydraStar™ actuator is adjustable from the driver's seat. Use the in cab controller to adjust the HydraStar's output and set up your hydraulic brakes to match the load for the ultimate in control and safety. Ideal for Horse Trailers, Boat Trailers, RV Trailers, Car Haulers, any Trailer with hydraulic brakes. The HydraStar™ HBA-12 has a maximum pressure settings of 1200 psi. Easily replaces surge, air/hydraulic and vacuum/hydraulic systems. Simply mount the HydraStar™ to the trailer and attach the hydraulic line.

Features Include:
• Only four wires to connect, 3 wires go to the tow vehicle receptacle, the fourth goes to the breakaway switch
• Works in reverse, no more pins to insert before backing up
• Eliminates brake drag common with surge actuators on down hill grades
• HydraStar installs on trailer with minimal wiring
• Meets or exceeds DOT brake actuator regulations
• Unit mounted bleeder makes bleeding the brake lines easier
• Engages trailer brakes when tow vehicle brake pedal is applied or when the in cab controller
override is activated
• Water tight extruded aluminum enclosure protects the unit in all weather conditions
Regulatory Compliant
• Fully compliant with CFR-393 federal braking requirements
• Includes detailed instruction manual
Note that the tow vehicle must be equipped with an industry standard electronic brake
controller.

Specifications:
• Application: single- or tandem-axle trailers with drum or disc brakes
• Maximum output pressure: 1,200 psi (Check with trailer brake manufacturer for pressure specifications)
• Vehicle requires an In-cab electric brake controller (sold separately) and a 7-Way trailer connector.
• Dimensions: 11-3/4" long x 3" wide x 7-3/8" tall
• 2-Year limited warranty

Files

Stock # 5426002

$579.00
