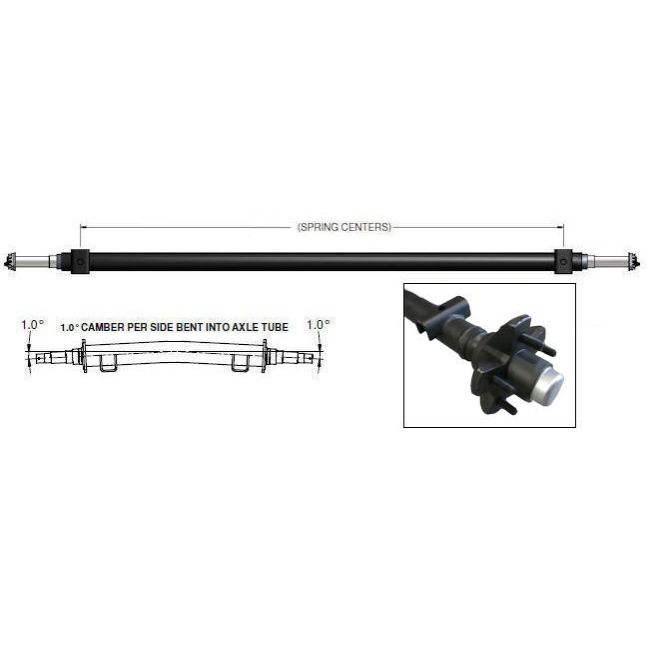

CARRY-ON Straight Trailer Axle 3.5K with Idler Hubs 84" H.F. / 70" S.C.
Stock# 7115047
CARRY-ON Factory OEM trailer axle designed for use with Carry-On utility & cargo trailers. Axle is complete and includes pre-installed 5-4.5 lug EZ-lube hubs. Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount. Black powder coated axle tube includes a 1 degree camber bend per side.
Overall Length = 89" Hub Face = 84" Spring Center = 70"
CARRY-ON Factory OEM replacement trailer axle designed specifically for use with Carry-On open utility & enclosed cargo trailers. Axle is complete and includes pre-installed 5 lug hubs.Spring seats are pre-welded.
Axle Type: 2-3/8" Round Tube - Black Powder Coated
Load Rating: 3,500 lbs.
Overall Length: 89" End of Spindle to End of Spindle
Spring Center: Pre-Welded Seats at 70" on center
Hub Face: 84"
Bolt Pattern: 5 on 4-1/2"
Hub Type: 5 bolt (Pre-Installed) EZ-Lube Hub
Outside to Outside Brake Flange: 84"
Spindle Size: 1-3/8" x 1-1/16"
Camber: 1° Per Side Bend into axle tube
Note:
• Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount.
• Carry-On 3,500 lb. axles with pre-installed hubs do not have 4-bolt brake flanges.
Product Name | CARRY-ON Straight Trailer Axle 3.5K with Idler Hubs 84" H.F. / 70" S.C. |
---|
