DEEMAXX 10" Disc Brake Set, MAXX (Integral) #DBI-3.5K-MAXXBOX
Stock# 7103013

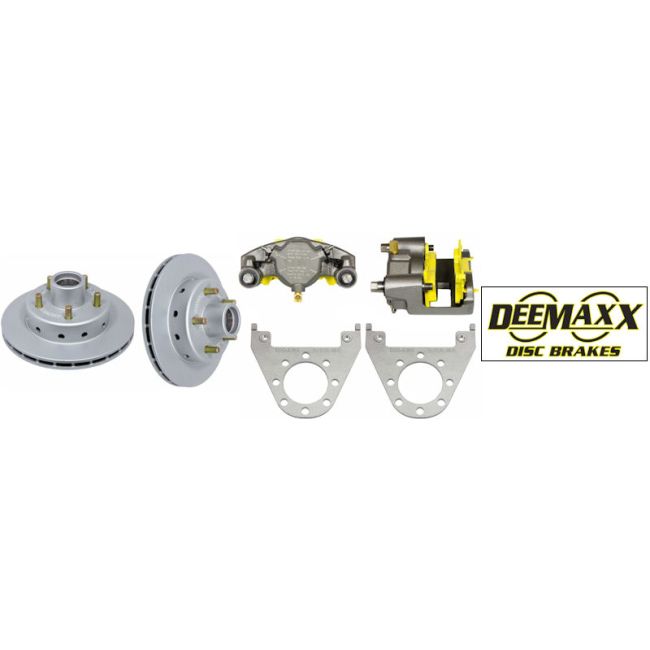

Kit Includes (2) DEEMAXX 10" MAXX COATED Integral Vented Rotors, (2) MAXX Calipers, (2) MAXX Mounting Brackets and (4) Caliper Pins. Bearings, seal, and cap not included. One kit required per axle.
Kit Includes (2) DEEMAXX 10" MAXX COATED Integral Vented Rotors, (2) MAXX Calipers, (2) MAXX Mounting Brackets and (4) Caliper Pins. Bearings, seal, and cap not included in this kit. One kit required per axle. 7 YEAR MAXX WARRANTY
See 'Related Items' below for options to complete your installation
MAXX plating, during a standard salt spray test, will only begin to form rust at 1008 hours. Integral type Rotor/Hubs combine the hub and rotor into one unit and are balanced as one unit, which offers a smoother ride. Wheel studs are pressed into the rotor. The rotor is a traditional vented style with additional vent holes in the hub cavity to help dissipate heat. The Caliper and Caliper Bracket are MAXX coated, mounts to 4 bolt brake flange and fits inside 13" and larger wheels.
Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.
ROTOR DIAMETER: 10" VENTED
REPLACES DRUM DIAMETER: 10"
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (13" & Larger Wheels)
AXLE RATING: 3500 lbs.
BEARING SIZES: 1-3/8" x 1-1/16" (NOT INCLUDED)
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Product Name | DEEMAXX 10" Disc Brake Set, MAXX (Integral) #DBI-3.5K-MAXXBOX |
---|
