DEEMAXX 13.1" Disc Brake Set, MAXX (Integral) #DBI-7K-MAXXBOX
Stock# 7103019

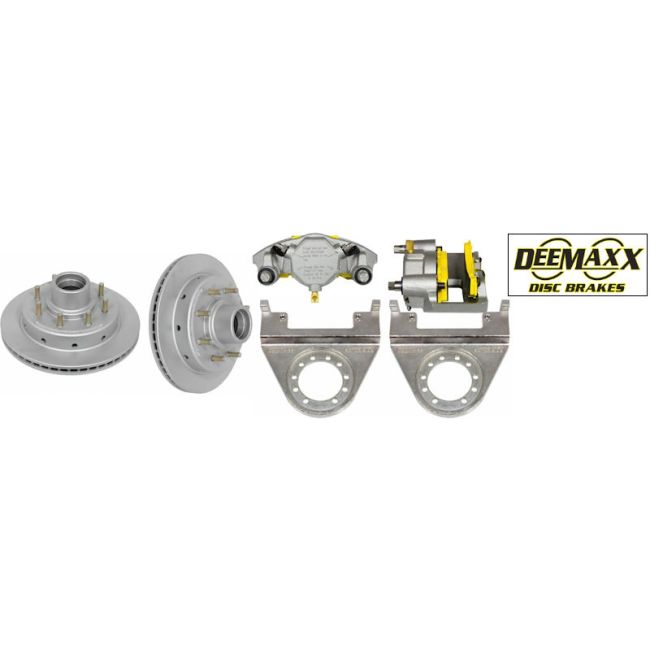

Kit Includes (2) DEEMAXX 13.1" MAXX COATED Integral 8 Lug Vented Rotors, (2) MAXX Calipers, (2) MAXX Mounting Brackets and (4) Caliper Pins. Bearings, seal, and cap not included. One kit required per axle.
Kit Includes (2) DEEMAXX 13.1" MAXX COATED Integral 8 Lug Vented Rotors, (2) MAXX Calipers, (2) MAXX Mounting Brackets and (4) Caliper Pins. Bearings, seal, and cap not included in this kit. One kit required per axle. 7 YEAR WARRANTY
See 'Related Items' below for options to complete your installation
MAXX plating, during a standard salt spray test, will only begin to form rust at 1008 hours. Integral type Rotor/Hubs combine the hub and rotor into one unit and are balanced as one unit, which offers a smoother ride. Wheel studs are pressed into the rotor. The rotor is a traditional vented style with additional vent holes in the hub cavity to help dissipate heat. The Caliper and Caliper Bracket are MAXX coated, mounts to 5 bolt brake flange and fits inside 16" and larger wheels.
Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.
ROTOR DIAMETER: 13.1" VENTED
REPLACES DRUM DIAMETER: 12"
# OF STUDS: 8 @ 1/2" diameter
BOLT CIRCLE: 6-1/2" (16" & Larger Wheels)
AXLE RATING: 7,000 lbs.
RACES INCLUDED: 25520-14125A
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Product Name | DEEMAXX 13.1" Disc Brake Set, MAXX (Integral) #DBI-7K-MAXXBOX |
---|
