DEEMAXX 13.1" Disc Brake Set, MAXX (Slip On) #DBSO-7K-MAXXBOX

Stock# 7103007

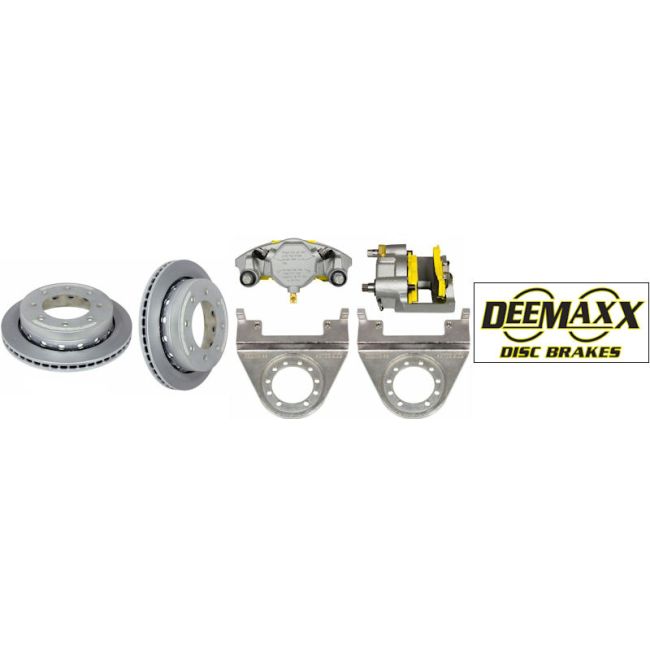

Kit Includes (2) DEEMAXX 13.1" MAXX COATED 8 Lug Vented Rotors, (2) MAXX Calipers, (2) MAXX Mounting Brackets and (4) Caliper Pins. One kit required per axle Wheel hubs not included.

$460.00
SKU
7103007

Kit Includes (2) DEEMAXX 13.1" MAXX COATED 8 Lug Vented Rotors, (2) MAXX Calipers, (2) MAXX Mounting Brackets and (4) Caliper Pins.
One kit required per axle. 7 YEAR MAXX WARRANTY

See 'Related Items' below for options to complete your installation

MAXX plating, during a standard salt spray test, will only begin to form rust at 1008 hours.  'Hat Style' or 'Slip On' rotors fits over standard wheel hub (Not Included).  The rotor is frequently stud piloted and is a loose fit on the hub. It is held in place by the wheel/wheel nuts.  The rotor is a traditional vented style with additional vent holes in the hub cavity to help dissipate heat. The Caliper and Caliper Bracket are MAXX coated, mounts to 5 bolt brake flange and fits inside 16" and larger wheels.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 13.1" VENTED
REPLACES DRUM DIAMETER: 12"
# OF STUDS: 8 @ 1/2" diameter
BOLT CIRCLE: 6-1/2" (16" & Larger Wheels)
AXLE RATING: 7,000 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs.



Brand
Deemaxx Components
Manufacturer Part Number
DBSO-7K-MAXXBOX
More Information
Product Name DEEMAXX 13.1" Disc Brake Set, MAXX (Slip On) #DBSO-7K-MAXXBOX
