DEEMAXX 13.1" Disc Rotor 7k, Integral #RTRHUB1317kMAXX

Stock# 7103046

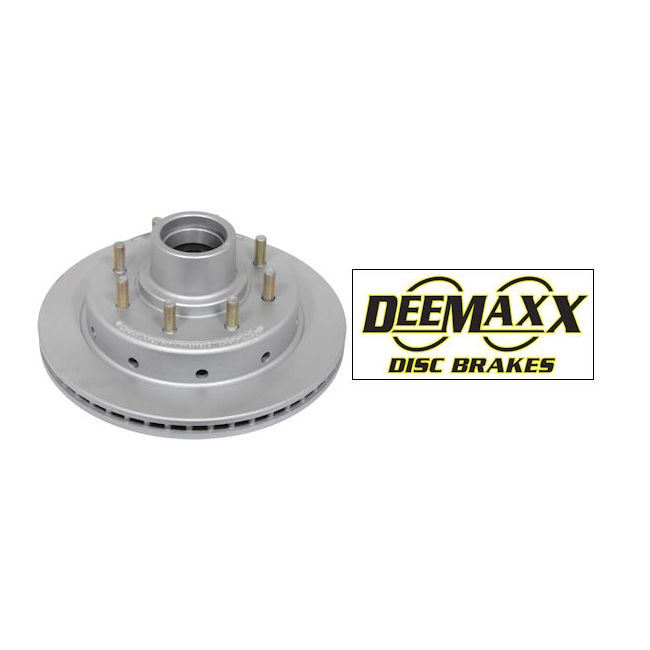

DEEMAXX 13.1" 7K MAXX PLATED Vented Integral Rotor/Hub trailer disc brake assembly. MAXX plating offers the best value of protection for salt water applications. (Bearings, seal, lug nuts and dust cap sold separately)

$157.50
SKU
7103046

13.1" Integral Rotor with MAXX plating. MAXX plating, during a standard salt spray test, will only begin to form rust at 1008 hours.  Integral type Rotor/Hubs combine the hub and rotor into one unit and are balanced as one unit, which offers a smoother ride. Wheel studs are pressed into the rotor. The rotor is a traditional vented style with additional vent holes in the hub cavity to help dissipate heat.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 13.1" VENTED
REPLACES DRUM DIAMETER: 12"
# OF STUDS: 8 @ 1/2" diameter
BOLT CIRCLE: 6-1/2" (16" & Larger Wheels)
AXLE RATING: 7,000 lbs.
RACES INCLUDED: 25520-14276



Brand
Deemaxx Components
Manufacturer Part Number
RTRHUB1317kMAXX
