DEXTER 70" Round Tube Straight Trailer Axle (2,000 lb.) #6419920
Stock# 5432094

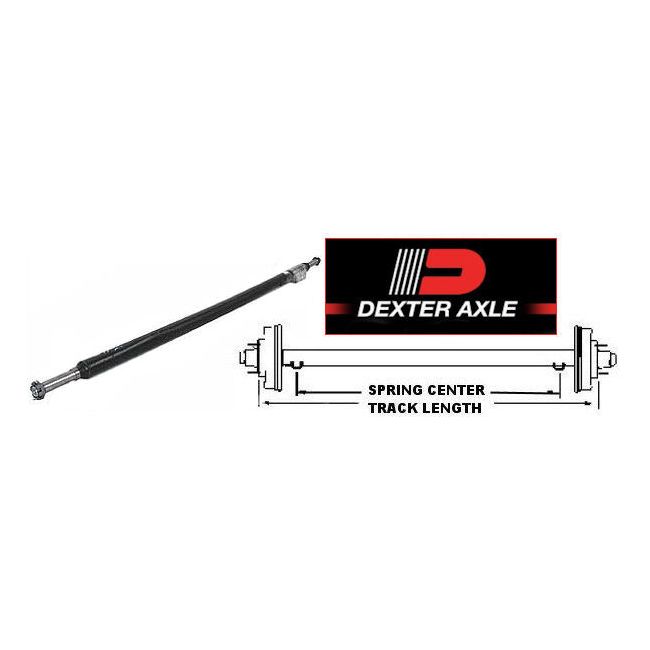

Track Length = 70" Overall = 74.75" Spring Center = 52"-60" Includes EZ-Lube Spindles. DEXTER 1-3/4" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 1-3/4" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up.
Axle Type: Round/Straight
Load Rating: 2,000 lbs.
Track Length: 70" Hub Face to Hub Face
Spring Center: 52" - 60"
Overall Length: 74.75"
Spindle Size: 1-1/16" x 1-1/16" EZ-Lube Spindles
| Product Name | DEXTER 70" Round Tube Straight Trailer Axle (2,000 lb.) #6419920 |
|---|
