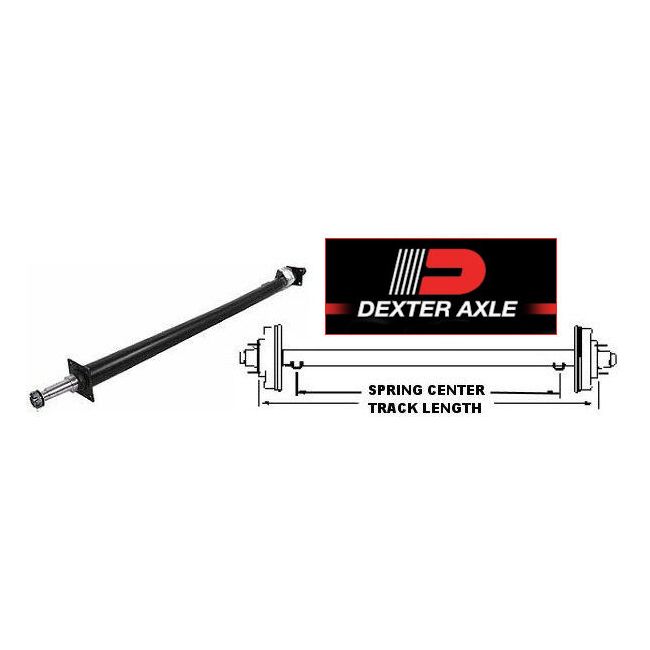

DEXTER 83" Round Tube Straight Trailer Axle (3,500 lb.) #5048938
Stock# 5432042
Track Length = 83" Overall = 87.75" Spring Center = 65"-73" Includes EZ-Lube Spindles. DEXTER 2-3/8" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.
Axle Type: Round/Straight
Load Rating: 3,500 lbs.
Track Length: 83" Hub Face to Hub Face
Spring Center: 65" - 73"
Overall Length: 87.75"
Outside to Outside Brake Flange: 76-9/16"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
| Product Name | DEXTER 83" Round Tube Straight Trailer Axle (3,500 lb.) #5048938 |
|---|
