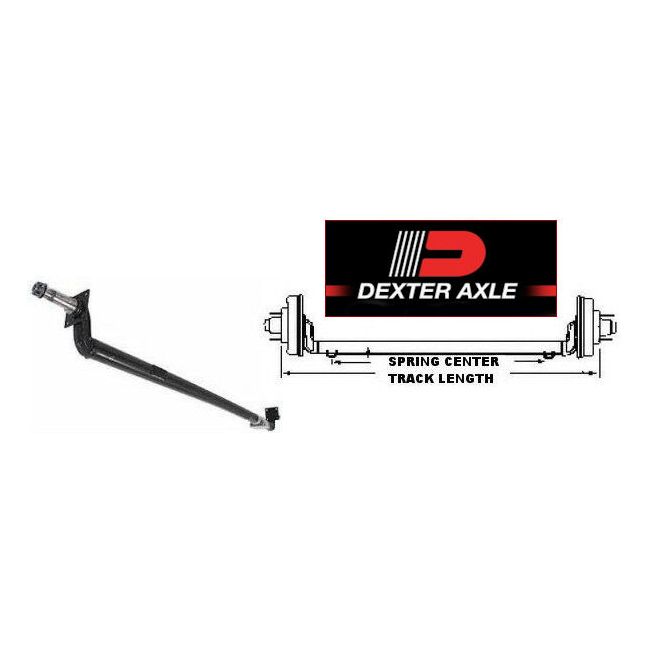

DEXTER 96" Round Tube 4" Drop Trailer Axle (3,500 lb.) #4744320

Rating:
100 % of 100

Stock# 5432048
Track Length = 96" Overall = 100.75" Spring Center = 78"-82"   Includes EZ-Lube Spindles.  DEXTER 2-3/8" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.

$242.00
SKU
5432048

CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.

Axle Type: Round/Drop
Load Rating: 3,500 lbs
Drop: 4"
Track Length: 96" Hub Face to Hub Face
Spring Center: 78" - 82"
Overall Length: 100.75"
Outside to Outside Brake Flange: 90"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles

Brand
Dexter Axle
Manufacturer Part Number
4744320
