12-1/4" x 3-3/8" Electric Brake Assy - Right Hand / 8k #K23-435-00

Rating:
100 % of 100

Stock# 5331043

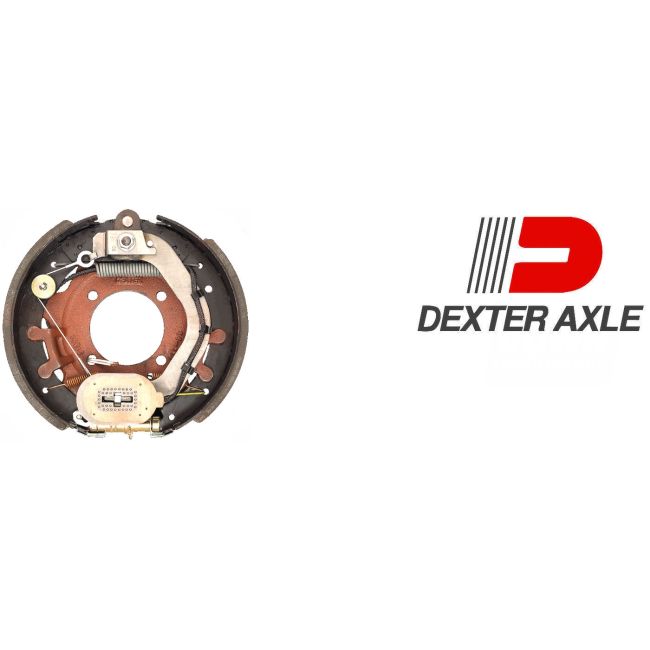

DEXTER 12-1/4" x 3-3/8" FSA Right Hand complete electric brake assembly. This brake is rated to a maximum capacity of 8,000 lbs. per pair.

$349.00
SKU
5331043

DEXTER 12-1/4" x 3-3/8" Right Hand complete electric forward self adjusting brake assembly. Mounts to 4-hole axle brake flange.
This brake is rated to a maximum capacity of 8,000 lbs. per pair. (White Wire Magnet)
SELF ADJUSTING FEATURE: Forward Self Adjusting (FSA) feature adjusts the brakes on both forward and reverse stops. Brake adjustment occurs when lining wear results in enough gap between the shoes and the brake drum surface. This added clearance will allow the adjuster mechanism to rotate the screw assembly at the bottom of the brake. That action expands the distance between the shoes and thus closes the gap to the drum surface.

MOUNT SIDE: Right (passenger side of vehicle)



Brand
Dexter Axle
Manufacturer Part Number
K23-435-00
More Information
Product Name 12-1/4" x 3-3/8" Electric Brake Assy - Right Hand / 8k #K23-435-00
