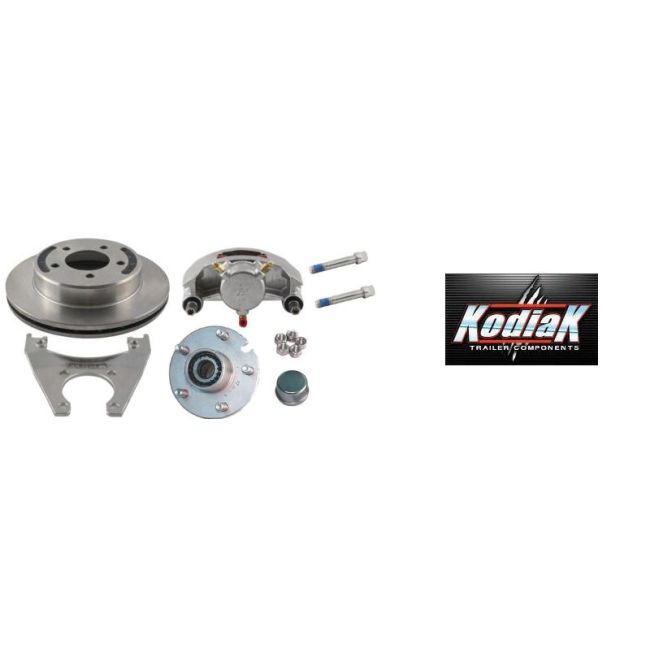

KODIAK 10" STAINLESS STEEL Vented Rotor, S.S. Caliper, S.S. Mounting Bracket & Galvanized Hub assembly. One kit required per wheel.
6 YEAR KODIAK WARRANTY See 'Related Items' below for options to complete your installation
All Stainless Steel offers the ultimate corrosion protection in salt water marine applications (i.e., negligible rust will form during a 1000 hour standard salt spray test).
'Hat Style' S.S. rotor fits over galvanized wheel hub. Wheel studs are pressed into the hub only. The rotor is frequently wheel bolt piloted and is a loose fit on the hub. It is held in place by the wheel/wheel nuts. Caliper mounts to 4 bolt brake flange and fits inside 14" and larger wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads. Kit also includes inner bearing & race, outer bearing & race, grease seal, grease cap and lug nuts.
Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.
EZ-LOADER 3.5k & 3k AXLE NOTE: Due to manufacturing variances this item must be retrofitted with Grease Seal # 5500103 to properly work with EZ-Loader Axles.
ROTOR DIAMETER: 10" VENTED
REPLACES DRUM DIAMETER: 10"
BEARING SIZE: 1-3/8" x 1-1/16"
GREASE SEAL ID: 1-11/16" (1.72")
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (14" & Larger Wheels)
AXLE RATING: 3500 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
