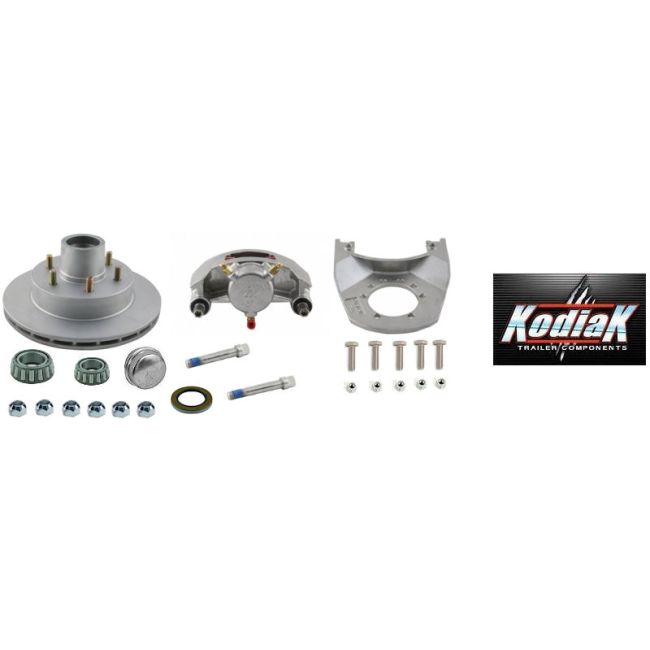

KODIAK 12" DACROMET PLATED Vented Integral Rotor/Hub and Mounting Bracket with STAINLESS STEEL Hardware and Caliper. One kit required per wheel.
3 YEAR KODIAK WARRANTY See 'Related Items' below for options to complete your installation
Dacromet plating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming in excess of 1000 hours).
The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Caliper mounts to 5 bolt brake flange and fits inside 15" and larger wheels. Stainless Steel Caliper is loaded standard with Non-Asbestos Ceramic friction pads. Kit also includes inner bearing & race, outer bearing & race, grease seal, grease cap and lug nuts.
LOADRITE AXLE: Due to manufacturing variances this item must be retrofitted with Grease Seal # 5331098 to properly work with LoadRite Axles.
Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.
ROTOR DIAMETER: 12" VENTED
REPLACES DRUM DIAMETER: 12"
BEARING SIZE: 1-3/4" x 1-1/4"
GREASE SEAL ID: 2.25"
# OF STUDS: 6 @ 1/2" diameter
BOLT CIRCLE: 5-1/2" (15" & Larger Wheels)
AXLE RATING: 5200 - 6000 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
