KODIAK 12" Trailer Disc Brake Assy, All S.S. (Slip On) #2RCM12SS
Stock# 1561036

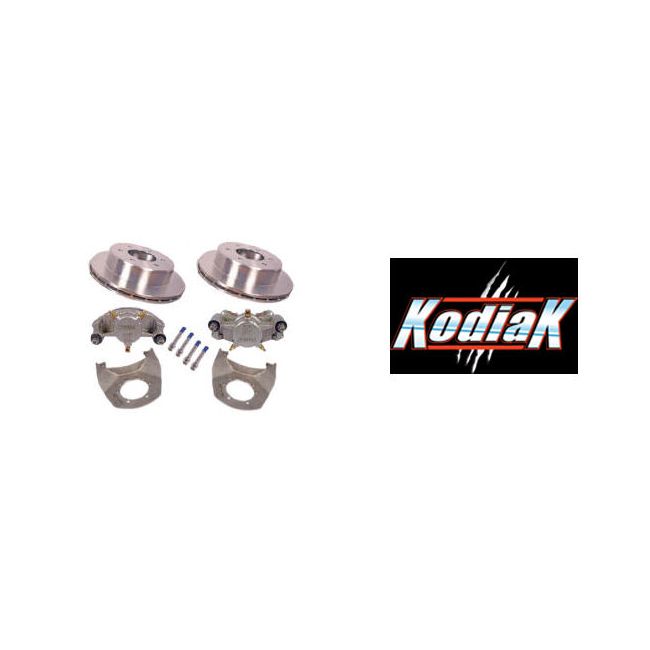

Kit Includes (2) KODIAK 12" STAINLESS STEEL Vented Rotors, (2) S.S. Calipers, (2) S.S. Mounting Brackets & (4) Caliper Pins. All Stainless Steel offers the ultimate corrosion protection in salt water marine applications. One kit required per axle. Wheel hubs not included.
Kit Includes (2) KODIAK 12" STAINLESS STEEL Vented Rotors, (2) S.S. Calipers, (2) S.S. Mounting Brackets and (4) Caliper Pins.
One kit required per axle. 6 YEAR KODIAK WARRANTY
See 'Related Items' below for options to complete your installation
All Stainless Steel offers the ultimate corrosion protection in salt water marine applications (i.e., negligible rust will form during a 1000 hour standard salt spray test). 'Hat Style' S.S. rotor fits over standard wheel hub (Not Included). The rotor is frequently wheel bolt piloted and is a loose fit on the hub. It is held in place by the wheel/wheel nuts. Caliper mounts to 5 bolt brake flange and fits inside 15" and larger wheels. Caliper is loaded with S.S. backed Non-Asbestos Ceramic friction pads.
ROTOR DIAMETER: 12" VENTED
REPLACES DRUM DIAMETER: 12"
# OF STUDS: 6 @ 1/2" diameter
BOLT CIRCLE: 5-1/2" (15" & Larger Wheels)
AXLE RATING: 5,200 - 6,000 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs.
