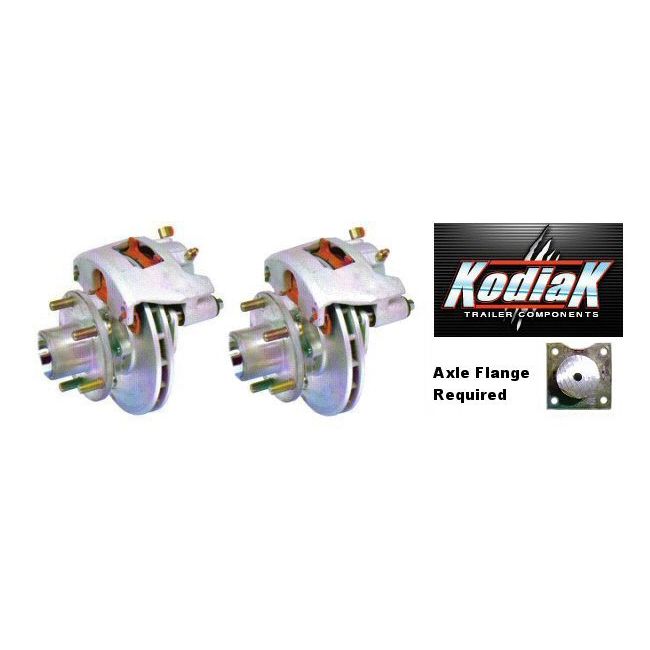

KODIAK 8" SILVER CADMIUM PLATED Vented Integral Rotor/Hub assembly, Caliper & Mounting Bracket w/Hardware.
Includes Bolt-On bracket that attaches to a notched 4-hole brake flange. Brake flange must be included or added to axle for installation.
3 YEAR KODIAK WARRANTY
Silver cadmium plating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400 and 600 hours).
The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Caliper mounts to 4 bolt brake flange and fits inside 10" and larger wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads.
NOTE: wheel bearings, grease seal, grease cap and lug nuts are not included with this package
ROTOR DIAMETER: 8" VENTED
REPLACES DRUM DIAMETER: 7"
BEARING SIZE: 1-1/16" x 1-1/16" or 1" x 1" (not included)
GREASE SEAL ID: 1-1/4" (not included)
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (10" & Larger Wheels)
AXLE RATING: 2000 lbs.
