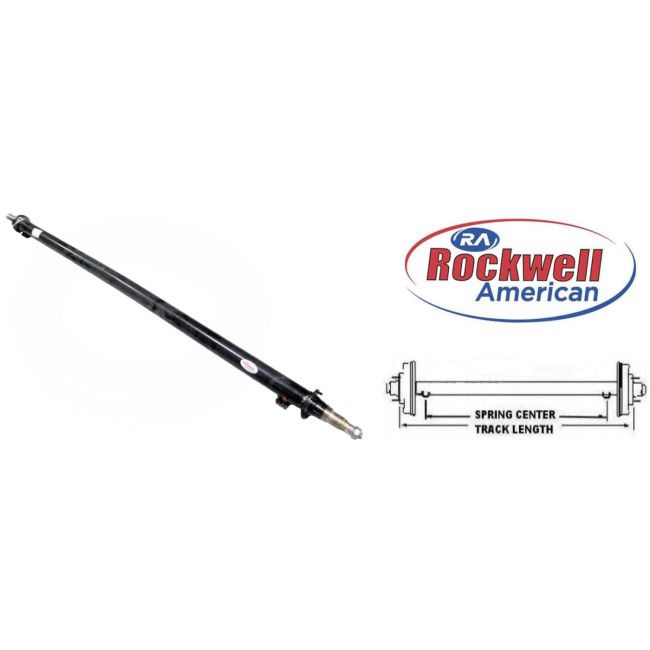

Rockwell 94" Round Tube Straight Trailer Axle (7,000 lb.) #70940800
Stock# 7108648
Track Length = 94" Overall = 99.82" Spring Center = 80" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, and D-washers.
CLICK FOR AXLE MEASURING INSTRUCTIONS
Rockwell 3" Diameter x 5/16" wall round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, nut retainers, and D-washers. The spring seats are pre-welded at 80". CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (5-hole).
Axle Type: Round/Straight
Load Rating: 7,000 lbs.
Track Length: 94" Hub Face to Hub Face
Spring Center: 80"
Overall Length: 99.82"
Outside to Outside Brake Flange: 85-1/2"
Spindle Size: 1-3/4" x 1-1/4" (grease seal lip I.D. = 2.25")
Product Name | Rockwell 94" Round Tube Straight Trailer Axle (7,000 lb.) #70940800 |
---|
