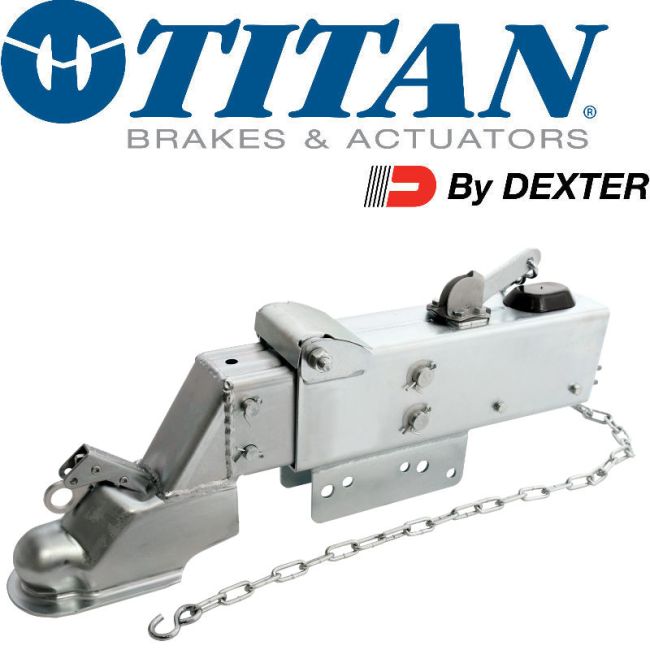

Hydraulic Surge Disc Brake Actuator with Zinc plated finish for maximum corrosion protection. 12,500 lbs. MAXIMUM GROSS LOAD with 2-5/16" coupler. Multiple mounting holes are on a 3" and 5" center front to back. The MODEL 10 actuator is intended for use on heavier recreational and light industrial trailers. The actual in-service rating is limited to that of the ball and hitch being used or the trailer manufacturer's G.V.W.R. shown on the certification label, whichever is lower.
Includes non-backflow style reversing solenoid.
Rated Capacity: 12,500 lbs
Ball Size: 2-5/16"
Brake Lock-Out: YES, Electric Reversing Solenoid
Frame Width: 3"
