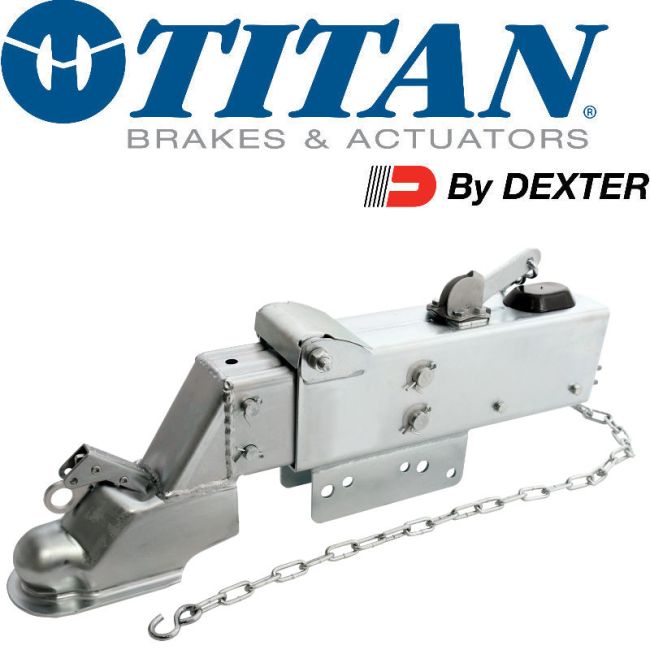

TITAN / DICO Model 20 Disc Brake Actuator #4750720

Stock# 5237021
2-5/16" ball drop coupler design hydraulic trailer brake actuator with zinc plated finish and a rated capacity of 20,000 lbs. Bolt-On design for 3" wide trailer tongue with multiple mounting holes on a 3" and 5" center front to back. Designed for DISC BRAKE applications only. Includes reversing solenoid and an extended housing for extra protection of solenoid.

$749.00

SKU

5237021

Details

Hydraulic Surge Disc Brake Actuator with Zinc plated finish for maximum corrosion protection.
Rated capacity: 20,000 lbs GVWR, 2,000 lbs tongue load. Mounting holes are on a 3" and 5" center front to back.
Recommended Use: For heavy or frequent-use applications, and for trailers pulled by trucks larger than standard pickups. Typical uses include but are not limited to industrial equipment trailers, agricultural spreaders, tank trailers and wagons, utility reel and pole trailers, and military ground support equipment.
Includes reversing solenoid and an extended housing for extra protection of solenoid and brake line.

Rated Capacity: 20,000 lbs
Ball Size: 2-5/16"
Brake Lock-Out: YES, Electric Reversing Solenoid
Frame Width: 3"
