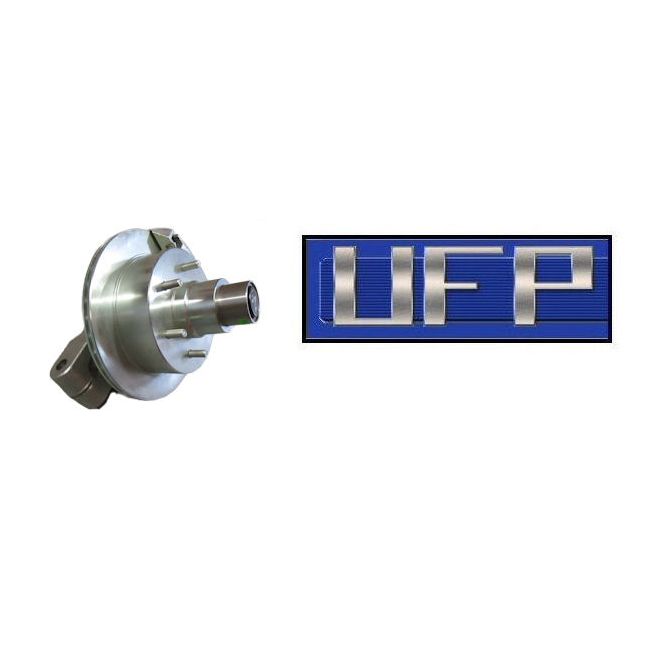

UFP 5.2K Vault Torsion Arm with DB-35 Disc Brake Assembly, (RH) #43043R

Stock# 5415117   FREE GROUND SHIPPING TO LOWER-48 U.S.
UFP Torsion Axle Trailing Arm Assembly (Right Hand Side) has a 6-Lug DB-35 12" disc brake assembly with rotor and caliper installed.This assembly uses the The VAULT “Hybrid Lubrication system” which gives you the ultimate wheel bearing lubrication and protection. No inspection, no maintenance and no service required.

$595.00
SKU
5415117-Free Ship

UFP Torsion Axle Trailing Arm Assembly (Right Hand Side) has a 6-Lug DB-35 12" disc brake assembly with rotor and caliper installed.This assembly uses the The VAULT “Hybrid Lubrication system” which gives you the ultimate wheel bearing lubrication and protection. No inspection, no maintenance and no service required. The 3/4" torsion arm mounting bolt, nut, and washer are not included.

Rated Capacity: 5,200 Lbs.
Spindle Size: 1-3/4" (25580) x 1-1/4" (LM67048) tapered

Diameter: 11-1/2"
Bolt circle:
6 on 5-1/2"

Inner Bearing: 1-3/4" (25580)
Inner Race: 25520 (Included)
Outer Bearing: 1-1/4" (LM67048)
Outer Race: LM67010 (Included)
Seal: 3.38" x 2.13"

Brand
UFP Trailer Parts
Manufacturer Part Number
43043R
