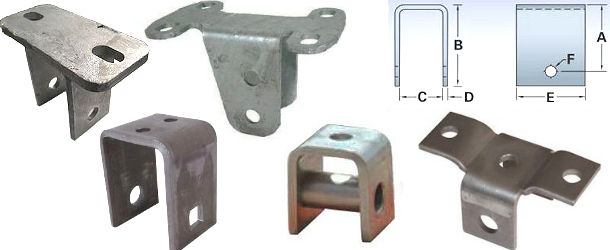

Leaf Spring Hangers & Seats

Stock# 5257037
Dimensions: A=1-7/8", B=1-1/8", C=4-1/2"
Hot dip galvanized bolt-on spring hanger can be use for front or rear mounting of 1-3/4" wide leaf springs (not for Double Eye rear).  Bolt Size=1/2"

Stock# 5257038
Dimensions: A=2", B=1-17/32", C=5-1/4"
Hot dip galvanized bolt-on spring hanger can be use for front or rear mounting of 1-3/4" & 2" wide leaf springs (not for Double Eye rear).  Bolt Size=1/2"

Stock# 5212072
Dimensions: A=1-7/8", B=1-1/4", C=1-1/2", Bolt Size=9/16"

Stock# 5500053
Front weld trailer leaf spring hanger for double eye springs.
A=1-7/8" B=1-1/2" C=3"  Bolt Size 9/16"

Stock# 5500056
Weld-on trailer leaf spring hanger for rear of C-Hook springs.
A=2-1/4" B=4-1/4" C=3"  Bolt Size 9/16"

Stock# 5500055
Front, Center or Rear weld trailer leaf spring hanger.
A=2" B=3-3/8" C=3"  Bolt Size 9/16"

Stock# 5500057
Center hanger for use with 5500061 & 5500062 equalizer bars.
Requires a 7/8"-9 x 4-11/16" bolt. A=3" B=3-5/8" C=3"  Bolt Size 7/8 X 4 11/16

Stock# 5500054
Rear double eye spring hanger. A=1-1/4" B=1" C=1-1/2"  Bolt Size 9/16"

Stock# 5291150
Heavy-duty galvanized leaf spring hanger for 2" x 3" frames. Measures 2-1/8" W x 6-3/4" L. Mounting holes will accept 1/2" bolts.

Stock# 5291156
Heavy-duty galvanized universal spring hanger for 2" or 3" wide frames. Mounting holes will accept 1/2" bolts.

Stock# 5500058
Rear slipper spring hanger for tandem axle applications.
Requires a 5/16" x 3-1/2" bolt. A=2-1/4" B=5-1/4" C=3"

Stock# 5257035
Hot dip galvanized bolt-on spring hanger is designed for 1-3/4" wide double-eye leaf springs with 25-1/4" eye-to-eye spring length.

Stock# 5257036
Hot dip galvanized bolt-on spring hanger is designed for a pair of 1-7/8" wide double-eye leaf springs, 25-1/4" length and an equalizer.

Stock# 1041308
LOADRITE galvanized spring support weldment for 26" heavy-duty spring applications. Measures 4.5" x 5.25" x 29" and is used on 3" wide frames.

Stock# 1041298
LOADRITE galvanized tandem spring support weldment for 26" open end slipper spring applications. Measures 62.5" in total length and is made for 3" wide frames.

Stock# 5419037
The Karavan spring hanger/fender bracket combo has 26-1/4" spring centers and accepts 37" fenders for 12" or 13" tires. Bracket has a zinc plated finish for superior corrosion resistance. Mounting hardware not included.

Stock# 5419038
The Karavan spring hanger/fender bracket combo has 26-1/4" spring centers and accepts 40" fenders for 13" or 14" tires. Bracket has a zinc plated finish for superior corrosion resistance. Mounting hardware not included.

Stock# 5419039
The Karavan spring hanger/fender bracket combo has 26-1/4" spring centers and accepts 43" fenders for 14" or 15" tires. Bracket has a zinc plated finish for superior corrosion resistance. Mounting hardware not included.

Stock# 5257039
Spring hanger and fender mount combination bracket. Galvanized fender step/mount with leaf spring hanger U-bolts to 3" wide trailer frame rail. Designed to be used with metal fenders up to 8" wide.

Stock# 5500063
Trailer axle spring seats can be welded on the top or bottom of round tube axles to provide a flat mounting plate surface with centering hole for leaf springs.

Stock# 5500064
Trailer axle spring seats can be welded on the top or bottom of round tube axles to provide a flat mounting plate surface with centering hole for leaf springs.

Stock# 5500065
Trailer axle spring seats can be welded on the top or bottom of round tube axles to provide a flat mounting plate surface with centering hole for leaf springs.

Stock# 5257167
Tie Down Engineering Zinc Plated Trailer leaf spring hanger kit, for 1-3/4" wide springs, includes: Weld-On Front & Rear Hangers (2 each), Shackle Links (4), Shackle Bolt w/Nut (6). Single axle kit with Short hangers for double eye leaf springs.

Stock# 5500087
1-3/4" Trailer leaf spring hanger kit includes: Weld-On Front & Rear Hangers (2 each), Shackle Links (4), Shackle Bolt w/Nut (6).
Single axle kit with Short hangers for double eye leaf springs.

Stock# 5500088
1-3/4" Trailer leaf spring hanger kit includes: Weld-On Front & Rear Hangers (2 each), Shackle Links (4), Shackle Bolt w/Nut (6).
Single axle kit with Long hangers for double eye leaf springs.

Stock# 5500089
1-3/4" Trailer leaf spring hanger kit includes: Weld-On Front / Rear Hangers (4), Shackle Bolt w/Nut (4). Light Duty Single axle kit with hangers for slipper style leaf springs.

Stock# 5257166
1-3/4" Trailer leaf spring hanger kit includes: Weld-On Front / Rear Hangers (4), Shackle Bolt w/Nut (4). Single axle kit with hangers for slipper style leaf springs.

Stock# 5257168
2" Trailer leaf spring hanger kit includes: Weld-On Front / Rear Hangers (4), Shackle Bolt w/Nut (4). Single axle kit with hangers for slipper style leaf springs.

Stock# 5257165
Trailer leaf spring hanger kit includes: Weld-On Front / Rear Hangers (6), Equalizer Bars (2), Shackle Links (8), Shackle Bolt w/Nut (14). Tandem axle kit for double eye leaf springs.

Stock# 5500091
Trailer leaf spring hanger kit includes: Weld-On Front / Rear Hangers (6), Equalizer Bars (2), Shackle Links (8), Shackle Bolt w/Nut (14). Tandem axle kit with Short hangers for double eye leaf springs.

Stock# 5500092
Trailer leaf spring hanger kit includes: Weld-On Front / Rear Hangers (6), Equalizer Bars (2), Shackle Links (8), Shackle Bolt w/Nut (14). Tandem axle kit with Long hangers for double eye leaf springs.

Stock# 5331040
Heavy-Duty Suspension Kit for tandem axle trailers with 33" axle spacing and 1-3/4" wide Double Eye springs.
Dimensions:   A = 5-3/4"   B = 2"

Stock# 5331155
Heavy-Duty Suspension Kit for tandem axle trailers with 1-3/4" wide Double Eye leaf springs.
Dimensions:   A = 6-1/8"   B = 4"
