2,000 lb. Capacity Square Galvanized Trailer Axles
2,000 lb. Capacity Square Galvanized Trailer Axles
2" x 2" Square, Galvanized Trailer Axle features a stainless steel wear sleeve and super lube grease zerks. Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes to your trailers specifications or use spring seats. No brake flanges are attached. Wheel Hubs and bearings sold separately.
Spindle size is 1-1/16" x 1-1/16"
Trailer Parts Tech Tip:

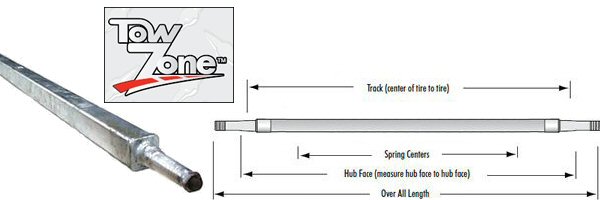

HOW TO MEASURE & SELECT AN AXLE
NOTE: AXLES REQUIRE SUPERLUBE / EZ-LUBE DUST CAPS
-
TIEDOWN 49" Square Galvanized Trailer Axle (2,000 lb.) #49534Stock# 7125135
Learn More
Overall Length = 54" Hub Face = 49" Spring Center = Recommended Range 34" - 39"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 51" Square Galvanized Trailer Axle (2,000 lb.) #G-49535Stock# 7125136
Learn More
Overall Length = 56" Hub Face = 51" Spring Center = Recommended Range 36" - 41"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 53" Square Galvanized Trailer Axle (2,000 lb.) #G-49536Stock# 7125137
Learn More
Overall Length = 58" Hub Face = 53" Spring Center = Recommended Range 38" - 43"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 55" Square Galvanized Trailer Axle (2,000 lb.) #G-49537Stock# 7125138
Learn More
Overall Length = 60" Hub Face = 55" Spring Center = Recommended Range 40" - 45"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 57" Square Galvanized Trailer Axle (2,000 lb.) #G-49538Stock# 7125139
Learn More
Overall Length = 62" Hub Face = 57" Spring Center = Recommended Range 42" - 47"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 59" Square Galvanized Trailer Axle (2,000 lb.) #G-49539Stock# 7125140
Learn More
Overall Length = 64" Hub Face = 59" Spring Center = Recommended Range 44" - 49"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 61" Square Galvanized Trailer Axle (2,000 lb.) #G-49540Stock# 7125141
Learn More
Overall Length = 66" Hub Face = 61" Spring Center = Recommended Range 46" - 51"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 63" Square Galvanized Trailer Axle (2,000 lb.) #G-49541Stock# 7125142
Learn More
Overall Length = 68" Hub Face = 63" Spring Center = Recommended Range 48" - 53"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 65" Square Galvanized Trailer Axle (2,000 lb.) #G-49542Stock# 7125143
Learn More
Overall Length = 70" Hub Face = 65" Spring Center = Recommended Range 50" - 55"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$200.00 -
TIEDOWN 69" Square Galvanized Trailer Axle (2,000 lb.) #G-49543Stock# 7125144
Learn More
Overall Length = 74" Hub Face = 69" Spring Center = Recommended Range 54" - 59"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$200.00 -
TIEDOWN 71" Square Galvanized Trailer Axle (2,000 lb.) #G-49544Stock# 7125145
Learn More
Overall Length = 76" Hub Face = 71" Spring Center = Recommended Range 56" - 61"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$200.00 -
TIEDOWN 75" Square Galvanized Trailer Axle (2,000 lb.) #G-49545Stock# 7125146
Learn More
Overall Length = 80" Hub Face = 75" Spring Center = Recommended Range 60" - 65"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$210.00 -
TIEDOWN 77" Square Galvanized Trailer Axle (2,000 lb.) #G-201275Stock# 7125278
Learn More
Overall Length = 82" Hub Face = 77" Spring Center = Recommended Range 62" - 67"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$186.50 -
TIEDOWN 79" Square Galvanized Trailer Axle (2,000 lb.) #G-201276Stock# 7125279
Learn More
Overall Length = 84" Hub Face = 79" Spring Center = Recommended Range 64" - 69"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$207.50 -
TIEDOWN 81" Square Galvanized Trailer Axle (2,000 lb.) #G-201277Stock# 7125280
Learn More
Overall Length = 86" Hub Face = 81" Spring Center = Recommended Range 66" - 71"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$213.95 -
TIEDOWN 85" Square Galvanized Trailer Axle (2,000 lb.) #G-49546Stock# 7125147
Learn More
Overall Length = 90" Hub Face = 85" Spring Center = Recommended Range 70" - 75"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$215.00 -
TIEDOWN 87" Square Galvanized Trailer Axle (2,000 lb.) #G-49547Stock# 7125148
Learn More
Overall Length = 92" Hub Face = 87" Spring Center = Recommended Range 72" - 77"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$215.00 -
TIEDOWN 89" Square Galvanized Trailer Axle (2,000 lb.) #G-49548Stock# 7125149
Learn More
Overall Length = 94" Hub Face = 89" Spring Center = Recommended Range 74" - 79"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$215.00 -
TIEDOWN 91" Square Galvanized Trailer Axle (2,000 lb.) #G-49570Stock# 7125150
Learn More
Overall Length = 96" Hub Face = 91" Spring Center = Recommended Range 76" - 81"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$215.00 -
TIEDOWN 93" Square Galvanized Trailer Axle (2,200 lb.) #G-50268Stock# 7125216
Learn More
Overall Length = 98" Hub Face = 93" Spring Center = Recommended Range 78" - 83"
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$215.50 -
SEA LION 1.5" Square (2,000 lb.) Trailer Axle, 56-3/4" H.F. #30157Stock# 5454016
Learn More
Factory replacement axle for SeaLion / TideWater PWC Trailers. Galvanized axle stock, includes pre-lubed hubs with bearings, seals and super lube dust caps. Wheel hubs have rear tapped zerk fitting for easy installation of fresh bearing grease. Does NOT come with lug nuts.
Track Length = 56-3/4" Spring Center = 45" Hub Assembly = 5-on-4.5" lug pattern$319.00 -
SEA LION 1.5" Square (2,000 lb.) Trailer Axle, 69-3/4" H.F. #30207Stock# 5454017
Learn More
Factory replacement axle for SeaLion / TideWater Boat Trailers. Galvanized axle stock, includes pre-lubed hubs with bearings, seals and super lube dust caps. Wheel hubs have rear tapped zerk fitting for easy installation of fresh bearing grease. Does NOT come with lug nuts.
Track Length = 69-3/4" Spring Center = 58" Hub Assembly = 5-on-4.5" lug pattern$299.00 -
SEA LION 2" Square (2,700 lb.) Trailer Axle, 91-3/4" H.F. #30167Stock# 5454018
Learn More
Factory replacement axle for SeaLion / TideWater Boat Trailers. Galvanized axle stock, includes pre-lubed hubs with bearings, seals and caps with grease fittings. Does NOT come with lug nuts.
Track Length = 91-3/4" Spring Center = 80" Hub Assembly = 5-on-4.5" lug pattern$439.00 -
TIEDOWN 71" Square Galvanized Torsion Trailer Axle (2,200 lb.) #G-50079JStock# 7125176
Learn More
Overall Length = 77" Hub Face = 71" Mounting Bracket Center = 55"
Torsion Axle with removable spindles, spindle nuts & cotter pins and pre-greased hubs. Designed for 10" and larger wheels.$599.00
