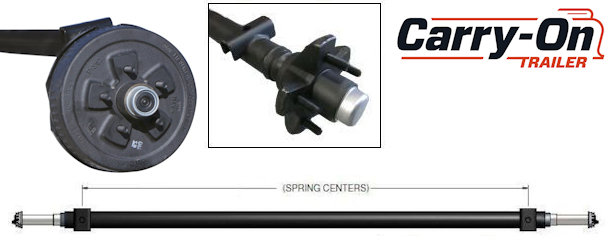

CARRY-ON Trailer Axles, Spindles and Tie-Plate Kits

Stock# T7115056
CARRY-ON trailer axle designed specifically for use with Carry-Onutility and enclosed trailers. Hub Face = 93" Spring Center = 80" Underslung  Brakes = Electric.
Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck for details)
SUPPLIES LIMITED - 1 left in stock

Stock# 7115032
CARRY-ON trailer axle designed specifically for use with Carry-On utility trailers. Axle weldment includes, welded spring seats, and idler hubs (5 on 4.5" bolt pattern).
Overall Length = 58-3/4"  Hub Face = 54"  Spring Center = 42"

Stock# 7115084
CARRY-ON trailer axle designed specifically for use with Carry-On utility trailers. Axle weldment includes, welded spring seats, and idler hubs (5 on 4.5" bolt pattern). Overall Length = 63"  Hub Face = 58"  Spring Center = 48"

Stock# 7115033
CARRY-ON trailer axle designed specifically for use with Carry-On utility trailers. Axle weldment includes, welded spring seats, and idler hubs (5 on 4.5" bolt pattern).
Overall Length = 64-3/4"  Hub Face = 60"  Spring Center = 47.25"

Stock# 7115035
CARRY-ON trailer axle designed specifically for use with Carry-On utility trailers. Axle weldment includes, welded spring seats, and idler hubs (5 on 4.5" bolt pattern).
Overall Length = 75-3/4"  Hub Face = 71"  Spring Center = 58.5"

Stock# 7115042
CARRY-ON Factory OEM trailer axle designed for use with Carry-On utility & cargo trailers.  Axle is complete and includes pre-installed 5 lug hubs. Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount. Black powder coated axle tube includes a 1 degree camber bend per side.
Overall Length = 77"  Hub Face = 72"  Spring Center = 58.5"

Stock# 7115043
CARRY-ON Factory OEM trailer axle designed for use with Carry-On utility & cargo trailers. Axle is complete and includes pre-installed 5 lug hubs. Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount. Black powder coated axle tube includes a 1 degree camber bend per side.
Overall Length = 82"  Hub Face = 77"  Spring Center = 64"

Stock# 7115047
CARRY-ON Factory OEM trailer axle designed for use with Carry-On utility & cargo trailers. Axle is complete and includes pre-installed 5-4.5 lug EZ-lube hubs. Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount. Black powder coated axle tube includes a 1 degree camber bend per side.
Overall Length = 89"  Hub Face = 84"  Spring Center = 70"

Stock# 7115051
CARRY-ON Factory OEM trailer axle designed for use with Carry-On utility & cargo trailers. Axle is complete and includes pre-installed 5 lug hubs. Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount. Black powder coated axle tube includes a 1 degree camber bend per side.
Overall Length = 93"  Hub Face = 88"  Spring Center = 74.5"

Stock# 7115055
CARRY-ON Factory OEM trailer axle designed for use with Carry-On utility & cargo trailers.  Axle is complete and includes pre-installed 5 lug hubs. Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount. Black powder coated axle tube includes a 1 degree camber bend per side.
Overall Length = 98"  Hub Face = 93"  Spring Center = 80"

Stock# 7115057
CARRY-ON Factory OEM trailer axle designed for use with Carry-On utility & cargo trailers.  Axle is complete and includes pre-installed 5 lug EZ-lube hubs. Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount. Black powder coated axle tube includes a 1 degree camber bend per side.
Overall Length = 98"  Hub Face = 93"  Spring Center = 80"

Stock# 7115050
CARRY-ON Factory OEM trailer axle designed for use with Carry-On utility & cargo trailers. Axle is complete and includes pre-installed 5 lug EZ-lube hubs. Pre-welded axle spring seats. Black powder coated axle tube includes a 1 degree camber bend per side.
Overall Length = 89"  Hub Face = 84"  Spring Center = 70"

Stock# T7115049
CARRY-ON trailer axle designed specifically for use with Carry-On utility and enclosed trailers. Hub Face = 84"
Spring Center = 70"   Brakes = Electric.
Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck for details)
SUPPLIES LIMITED

Stock# 7115151
CARRY-ON castle nut kit includes: (1) 1" - 14 Nut , (1) 1" ID Washer and (1) 1/8-2" Cotter Pin. Designed to be used with Carry-On 1-1/16" spindles.

Stock# 7115036
CARRY-ON 1,750 lb. capacity (each) round stock trailer axle spindle for 1-3/8" x 1-1/16" wheel bearing sizes.
Each spindle is turned from high tensile, cold rolled steel which increases the hardness and strength of the metal. 100% quality control checked for accuracy. Includes nut, washer & cotter pin.

Stock# 7115021
CARRY-ON 1,250 lb. capacity (each) round stock trailer axle spindle for 1-1/16" x 1-1/16" wheel bearing sizes.  Each spindle is turned from high tensile, cold rolled steel which increases the hardness and strength of the metal. 100% quality control checked for accuracy. Includes nut, washer & cotter pin.

Stock# 7115022
CARRY-ON 1,250lb. capacity (each) round stock trailer axle spindle for 1" x 1" wheel bearing sizes.  Each spindle is turned from high tensile, cold rolled steel which increases the hardness and strength of the metal. 100% quality control checked for accuracy. Includes nut, washer & cotter pin.

Stock# 7115108
CARRY-ON steel trailer axle tie plates fit most 2,000 lbs. rated axles with a 1-7/8" diameter axle tube. Sold as a pair.

Stock# 7115076
CARRY-ON steel trailer axle tie plates fit most 3,500 lbs. rated axles with a 2-3/8" diameter axle tube. Sold as a pair.

Stock# 7115109
CARRY-ON steel trailer axle tie plates fit most 5,200 lbs. rated axles with a 3" diameter axle tube. Sold as a pair.

Stock# 7115111
CARRY-ON steel trailer u-bolts fit most axles with a 1-7/8" diameter round axle tube. Kit includes QTY: 2 round shoulder 1-7/8" x 4-1/8" U-bolts with 3/8"-16 threads, QTY: 4 Flat Washers 3/8", and QTY: 4 Nylock Nuts 3/8".

Stock# 7115077
CARRY-ON steel trailer u-bolts fit most 3,500 lbs. rated axles with a 2-3/8" diameter round axle tube. Kit includes QTY:2 round shoulder 4-1/2" long 2-3/8" wide U-bolts with 1/2"-13 threads, QTY: 4 Flat Washers 1/2", and QTY: 4 Nylock Nuts 1/2".

Stock# 7115112
CARRY-ON steel trailer u-bolts fit most axles with a 3" diameter round axle tube. Kit Includes QTY: 2 round shoulder 3" U-bolts with 9/16"-18 threads and QTY: 4 Nylock Nuts 9/16".

Stock# 7115079
CARRY-ON zinc plated steel trailer u-bolts fit most axles with 2" x 2" diameter square axle tube. Kit Includes QTY: 2 square shoulder 2" U-bolts with 3/8"-16 threads, QTY: 4 Flat Washers 3/8", and QTY: 4 Nylock Nuts 3/8".

Stock# 7115080
CARRY-ON Zinc plated steel trailer u-bolts fit most axles with 2" x 2" diameter square axle tube. Kit Includes QTY: 2 square shoulder, 2-1/16" wide (I.D.) x 3-7/8" long U-bolts with 1/2"-13 threads, QTY: 4 Flat Washers 1/2", and QTY: 4 Nylock Nuts 1/2".

Stock# 7115078
CARRY-ON Zinc plated steel trailer u-bolts fit most axles with 3" x 3" diameter square axle tube. Kit Includes QTY: 2 square shoulder U-bolts (3.125" Wide x 4" Long) with 1/2"-13 threads, QTY: 4 Flat Washers 1/2", and QTY: 4 Nylock Nuts 1/2".
