KARAVAN Factory Replacement Trailer Axles
KARAVAN Factory Replacement Trailer Axles
Factory replacement zinc plated square stock axles for KARAVAN Boat Trailers.
Axle wheel hubs, spindle nuts and washers are sold separately on some models.
All Karavan axles will have a "road-set" camber.

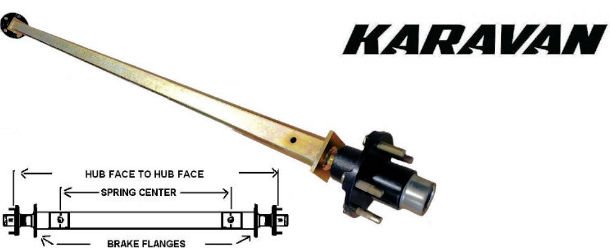

Trailer Parts Tech Tip: HOW TO MEASURE & SELECT THE PROPER AXLE
-
KARAVAN - KNOTT 53" Galvanized Trailer Axle (1,500 lb.) #310-00333-GLStock# 5419032
Learn More
Overall Length = 58" Hub Face = 53" Spring Center = 42-1/4" AUTOFLEX-KNOTT makes this KARAVAN original equipment factory replacement trailer axle. Axle weldment includes hubs, bearings, seal and dust cap. Lug nuts sold separately.$199.00 -
KARAVAN 67" Zinc Plated Trailer Axle (2,700 lb.) #310-03631-ZNStock# 5419290
Learn More
Overall Length = 72.5" Hub Face = 67" Spring Center = 54"
KARAVAN Axle weldment includes hubs, bearings, seal and dust cap. Lug nuts sold separately.$314.00 -
KARAVAN 74.75" Zinc Plated Trailer Axle w/Hubs (2,700 lb.) #310-00118-ZNStock# 5419315
Learn More
Overall Length = 79.75" Hub Face = 74.75" Spring Center = 62" Hubs & bearings are included with this factory original KARAVAN trailer axle.$399.95 -
KARAVAN 76.50" Zinc Plated Trailer Axle w/Hubs (2,700 lb.) #310-01252-ZNStock# 5419274
Learn More
Overall Length = 81.50" Hub Face = 76.50" Spring Center = 63.13" KARAVAN original equipment factory replacement trailer axle with zinc plated axle stock. Wheel hubs, bearings, and spindle nut kit are included.$369.00 -
KARAVAN 82.70" Galvanized Trailer Axle w/Hubs (2,700 lb.) #310-03471-GLStock# 5419272
Learn More
Overall Length = 87.50" Hub Face = 82.70" Spring Center = 68.00" Hubs & bearings are included with this factory original KARAVAN trailer axle.$499.00 -
KARAVAN 86.25" Galvanized Trailer Axle w/Hubs (2,700 lb.) #310-01984-GLStock# 5419280
Learn More
Overall Length = 91.25" Hub Face = 86.25" Spring Center = 75.00" KARAVAN original equipment factory replacement trailer axle with galvanized axle stock. Wheel hubs, bearings, and spindle nut kit are included.$429.00 -
KARAVAN 85.25" Galvanized Trailer Axle (3,500 lb.) #300-01134-GLStock# 5419017
Learn More
Overall Length = 90.25" Hub Face = 85.25" Spring Center = 72.62" Brake Flange = 79" Axle weldment only, hubs & bearings sold separately.
NOTE: KARAVAN recommends that this axle be used with drum brakes only$349.95 -
KARAVAN 87.32" Trailer Axle w/Hubs (3,500 lb.) #310-03472-GLStock# 5419275
Learn More
Overall Length = 92" Hub Face = 87.32" Spring Center = 72.62" Brake Flange = 81" KARAVAN original equipment factory replacement trailer axle with galvanized axle stock. Wheel hubs, bearings, and spindle nut kit are included.$399.00 -
KARAVAN 88" Galvanized Trailer Axle w/Hubs (3,500 lb.) #310-01118-GL-GStock# 5419273
Learn More
Overall Length = 94" Hub Face = 88" Spring Center = 76"
KARAVAN axle weldment includes hubs, bearings, seal and dust cap. Lug nuts sold separately.$545.00 -
KARAVAN 1,500 lb. Torsion Axle w/Idler Hubs #200-00124-GLStock# 5419158
Learn More
Track Length = 53" Frame Center = 42.32"
KARAVAN galvanized 2" x 2" torsion axle assembly includes pre installed hubs and brake mounting flanges. Does NOT include lug nuts.$449.00 -
KARAVAN 1,500 lb. Torsion Axle w/Idler Hubs #200-00118-GLStock# 5419159
Learn More
Track Length = 53" Frame Center = 42.32"
KARAVAN galvanized 2" x 2" torsion axle assembly includes pre installed hubs. Does NOT include lug nuts.$459.00Out of stock -
KARAVAN 3,750 lb. Drop Center Torsion Axle w/Idler Hubs #200-00102-GLStock# 5419326
Learn More
Track Length = 89-1/2" Frame Center = 72"
Factory replacement torsion axle for KARAVAN Trailers. Galvanized 2-3/8" x 2-3/8" torsion axle assembly includes pre-installed hubs without lug nuts.$795.00 -
KARAVAN 2,100 lb. Drop Center Torsion Axle w/Idler Hubs #200-00073-GLStock# 5419324
Learn More
Track Length = 70-1/2" Frame Center = 53-3/4"
Factory replacement torsion axle for KARAVAN Trailers. Galvanized 2-3/8" x 2-3/8" torsion axle assembly includes pre-installed hubs without lug nuts.$769.00 -
KARAVAN 3,000 lb. Drop Center Torsion Axle w/Idler Hubs #200-00054-GLStock# 5419325
Learn More
Track Length = 80-1/2" Frame Center = 67-3/4"
Factory replacement torsion axle for KARAVAN Trailers. Galvanized 2-3/8" x 2-3/8" torsion axle assembly includes pre-installed hubs without lug nuts.$729.00Out of stock -
KARAVAN 2,200 lb. Snowmobile Torsion Axle w/Idler Hubs #200-00040-NAStock# 5419049
Learn More
Track Length = 70.98" Frame Center = 55.00"
Factory replacement torsion axle for KARAVAN Snowmobile Trailers. Galvanized 2" x 2" torsion axle assembly includes pre-installed hubs without lug nuts.$695.00 -
KARAVAN (3,750 lbs.) 2-5/8" Sq. Drop Center Torsion Axle #200-00153-GLStock# 5419204
Learn More
Frame Center = 75.00" Overall = 96.90" Hub Face to Hub Face = 91.85"
Hot dipped galvanized square stock torsion axle with 5-lug hubs. 4-hole brake flange attached.$799.00
