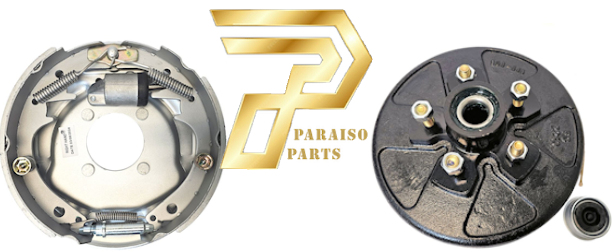

Paraiso Hydraulic Brakes

Paraiso Hydraulic Brakes

*Trailer surge brakes consist of a hydraulic coupler or ACTUATOR, hydraulic BRAKE TUBING, backing plate assemblies or FOUNDATION BRAKES, and brake DRUM & HUB assemblies.
*Trailer Drum Brakes work by the "surge" or "push" of the trailer toward the tow vehicle during deceleration which automatically synchronizes the trailer brakes with the tow vehicle brakes. As the trailer pushes against the vehicle, the actuator telescopes together and applies force to its master cylinder, supplying hydraulic pressure to the trailer brakes.
*Foundation Brake assemblies (backing plate, brake shoes & springs) are available in 10" & 12" diameters with the two most common designs being UNI-SERVO and FREE BACKING. 'Uni-Servo' brakes have 20% braking power in reverse, therefore they are recommended to be matched with an Actuator that is designed with a 'Back-Up Lock Out' for backing up an incline or over soft ground. 'Free Backing' brakes incorporate a unique design which allows the trailer to 'roll free' while backing up, but they have no braking power in reverse.
*When selecting trailer brake components for your trailer, consider the weight of trailer fully loaded with all cargo and equipment. For multi-axle trailers, consider how many axles will be equipped with brakes to meet your stopping requirements. *Also, to get the most benefit from your brake system, follow the instructions for care and maintenance in the installation and service manual included with each actuator, foundation brake, and brake tubing kit.

-31%

PARAISO Free-Backing 12" x 2" Right Hand Brake Assembly #AB28

Stock# 7160135
PARAISO Marine Brake Free-Backing assembly featuring a Dacromet corrosion-resistant finish. Brake comes completely assembled, ready to bolt to the 5-hole trailer axle brake mounting flange.
Learn More

Special Price $49.00 was $71.50
-31%

PARAISO Free-Backing 12" x 2" Left Hand Brake Assembly #AB27

Stock# 7160134
PARAISO Marine Brake Free-Backing assembly featuring a Dacromet corrosion-resistant finish. Brake comes completely assembled, ready to bolt to the 5-hole trailer axle brake mounting flange.
Learn More

Special Price $49.00 was $71.50
-34%

PARAISO 12" x 2" Right Hand Brake Assembly #AB24

Stock# 7160133
PARAISO Marine Brake Manual-Adjust assembly featuring a Dacromet corrosion-resistant finish. Brake comes completely assembled, ready to bolt to the 5-hole trailer axle brake mounting flange.
Learn More

Special Price $39.00 was $59.00
-34%

PARAISO 12" x 2" Left Hand Brake Assembly #AB23

Stock# 7160132
PARAISO Marine Brake Manual-Adjust assembly featuring a Dacromet corrosion-resistant finish. Brake comes completely assembled, ready to bolt to the 5-hole trailer axle brake mounting flange.
Learn More

Special Price $39.00 was $59.00
-30%

PARAISO 10" x 2-1/4" Right Hand Brake Assembly #AB10

Stock# 7160016
PARAISO Marine Brake assembly featuring a Dacromet corrosion-resistant finish. Brake comes completely assembled, ready to bolt to the 4-hole trailer axle brake mounting flange.
Learn More

Special Price $32.50 was $46.75
-30%

PARAISO 10" x 2-1/4" Left Hand Brake Assembly #AB9

Stock# 7160015
PARAISO Marine Brake manual adjust assembly featuring a Dacromet corrosion-resistant finish. Brake comes completely assembled, ready to bolt to the 4-hole trailer axle brake mounting flange.
Learn More

Special Price $32.50 was $46.75
PARAISO 10" x 2-1/4" Free-Backing Right Hand Brake Assembly #AB14

Stock# 7160008
PARAISO Marine Brake assembly featuring a Dacromet corrosion-resistant finish. Brake comes completely assembled, ready to bolt to the 4-hole trailer axle brake mounting flange.
Learn More

$52.75
PARAISO 10" x 2-1/4" Free-Backing Left Hand Brake Assembly #AB13

Stock# 7160007
PARAISO Marine Brake assembly featuring a Dacromet corrosion-resistant finish. Brake comes completely assembled, ready to bolt to the 4-hole trailer axle brake mounting flange.
Learn More

$52.75
PARAISO 12" x 2" Brake Drum, 6 on 5.5" #DK2

Stock# 7160025
PARAISO 6-Studs on 5-1/2" Bolt Circle Trailer Brake Drum designed for 5.2 - 6K axles. Includes wheel bearings 1-1/4" (15123) x 1-3/4" (25580), grease seal (I.D. = 2.25"), lug nuts, cotter pin, grease cap, and cap plug.
Learn More

$99.75
PARAISO 12" x 2" Brake Drum, 8 on 6.5" #DK3

Stock# 7160026
PARAISO 8-Studs on 6-1/2" Bolt Circle Trailer Brake Drum designed for 7K axles. Includes wheel bearings 1-1/4" (14125A) x 1-3/4" (25580), grease seal (I.D. = 2.25"), 9/16"-18 lug nuts, cotter pin, grease cap, and cap plug.
Learn More

$109.00
-25%

PARAISO 12-1/4" x 3-3/8" Drum 8K, 5/8"-18 Studs #DK4

Stock# 7160039
PARAISO Brake Drum, 8 stud on 6.5" bolt circle, 5/8"-18 studded, 4.75" pilot dia. Includes 1-1/4" (02475) x 1-3/4" (25580) bearings, Grease seal, Threaded Grease Cap w/Rubber plug, "O" Ring, 90° cone nuts.
Learn More

Special Price $139.00 was $185.00
-36%

PARAISO 12-1/4" x 3-3/8" Drum 9K & 10K, 5/8"-18 Studs #DK5

Stock# 7160040
PARAISO Brake Drum, 8 stud on 6.5" bolt circle, 5/8"-18 studded, 4.75" pilot dia. Includes 2-1/4"(387A) x 1-3/4"(25580) bearings, Oil seal, Oil cap w/Rubber plug, "O" Ring, 90° cone nuts & Clamp Ring.
Learn More

Special Price $159.00 was $249.00
-39%

PARAISO 12-1/4" x 5" Drum 12K, 5/8"-18 Studs #DK6

Stock# 7160041
PARAISO Brake Drum, 8 stud on 6.5" bolt circle, 5/8"-18 studded, 4.75" pilot dia. Includes 2-1/4"(28682) x 2-5/8"(3984) bearings, Oil seal, Oil cap w/Rubber plug, "O" Ring, 90° cone nuts & Clamp Ring.
Learn More

Special Price $199.00 was $325.00
-50%

TPS Brake Mounting Nut, 7/16"-20

Stock# 7155039
TPS brake mounting nut is used to attach brake backing plates to axle brake flanges.
Learn More

Special Price $0.50 was $1.00
-53%

TPS Brake Mounting Lock Washer (7/16") #TPSLW2

Stock# 7155040
TPS brake mounting lock washer is used to attach brake backing plates to axle brake flanges.
Learn More

Special Price $0.35 was $0.75
TPS Brake Mounting Nut, 3/8"-24

Stock# 7155037
TPS brake mounting nut is used to attach brake backing plates to axle brake flanges.
Learn More

$1.00
TPS Brake Mounting Lock Washer (3/8") #TPSLW1

Stock# 7155038
TPS brake mounting lock washer is used to attach brake backing plates to axle brake flanges.
Learn More

$0.75
