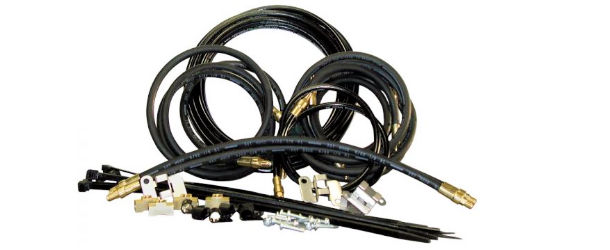

Trailer Brake Line Kits, Tubing and Fittings

Trailer Parts Superstore offers brake line kits for Leaf Spring Axle Trailers with Disc or Drum brakes. Material selection includes D.O.T. approved Flexiable Rubber, 'AG' Coated Steel or Stainless Steel for maximum corrision resistance. Brake line kits for Torsion Axle Trailers are also available in the 'AG' coated finish. In addition to the kits, we also offer a wide selection of individual brake lines and fittings to meet almost any trailer brake requirement.
Please note that Disc Brakes require the addition of a flexible hose between the caliper and steel brake tubing. Use stock # 5256100 24" hose adapter kit to convert Drum Brake lines for use with Disc Brakes.

Trailer Parts Tech Tip: Typical Brake Tubing Diagram

Quantity	Description		Price
		TIE DOWN Disc Brake Adapter Line Kit #81099 Stock# 5256100 Tie Down Engineering 3/16" x 24" flexible brake lines with brass couplings, required when using steel brake lines.	$52.95
		Flexible Brake Line 2nd Axle Expansion Kit #80327 Stock# 5256186 Designed to be used with Tie-Down Engineering Single Axle Line Kit (#5256044) as an "Add On" tandem axle expansion kit. Works for both Disc or Drum style brakes.	$43.50
		20' Single Axle Disc/Drum Flexible Brake Tubing Kit #80326 Stock# 5256044 DISC or DRUM Hydraulic brake tubing kit for Leaf Spring & Torsion suspension style axles. Brake lines provided are DOT/Flexible hoses approved for use on all trailer brakes.	$59.95
		20' Single Axle Trailer Brake Tubing Kit #0539-001 Stock# 5329001 Hydraulic brake tubing kit for leaf spring suspension style axles with drum brakes. 20' is measured from the actuator to the axle 'Tee' fitting.	$56.95
		20' Single Axle Trailer DISC Brake Tubing Kit #0539-013 Stock# 5329020 Hydraulic brake tubing kit for leaf spring suspension style axles with Disc brakes. Includes two 13" flex hoses for 'floating' calipers. 20' is measured from the actuator to the axle 'Tee' fitting.	$76.95
		25' Single Axle Trailer DISC Brake Tubing Kit #0539-014 Stock# 5329021 Hydraulic brake tubing kit for leaf spring suspension style axles with Disc brakes. Includes two 13" flex hoses for 'floating' calipers. 25' is measured from the actuator to the axle 'Tee' fitting.	$82.50
		20' Tandem Axle Trailer Brake Tubing Kit #0539-003 Stock# 5329002 Hydraulic brake tubing kit for leaf spring suspension style axles with drum brakes. 20' is measured from the actuator to the front axle 'Tee' fitting.	$89.95
		20' Tandem Axle Disc/Drum Flexible Brake Tubing Kit #80328 Stock# 5256045 DISC or DRUM Hydraulic brake tubing kit for Leaf Spring & Torsion suspension style axles. Brake lines provided are DOT/Flexible hoses approved for use on all trailer brakes.	$99.00
		20' Tandem Axle Trailer DISC Brake Tubing Kit #0539-015 Stock# 5329022 Hydraulic brake tubing kit for leaf spring suspension style axles with Disc brakes. Includes four 13" flex hoses for 'floating' calipers. 20' is measured from the actuator to the front axle 'Tee' fitting.	$141.50
		25' Tandem Axle Trailer Brake Tubing Kit #0539-004 Stock# 5329003 Hydraulic brake tubing kit for leaf spring suspension style axles with drum brakes. 25' is measured from the actuator to the front axle 'Tee' fitting.	$94.50
		25' Tandem Axle Trailer DISC Brake Tubing Kit #0539-016 Stock# 5329023 Hydraulic brake tubing kit for leaf spring suspension style axles with Disc brakes. Includes four 13" flex hoses for 'floating' calipers. 25' is measured from the actuator to the front axle 'Tee' fitting.	$146.50
		20' Single Axle Trailer Brake S.S. Tubing Kit #0539-005 Stock# 5329004 Hydraulic stainless steel brake tubing kit for leaf spring suspension style axles with drum brakes. 20' is measured from the actuator to the axle 'Tee' fitting.	$123.95
		20' Single Axle Trailer DISC Brake S.S. Tubing Kit #0539-017 Stock# 5329024 Hydraulic stainless steel brake tubing kit for leaf spring suspension style axles with Disc brakes. Includes two 13" flex hoses for 'floating' calipers. 20' is measured from the actuator to the axle 'Tee' fitting.	$131.95
		25' Single Axle Trailer DISC Brake S.S. Tubing Kit #0539-018 Stock# 5329025 Hydraulic stainless steel brake tubing kit for leaf spring suspension style axles with Disc brakes. Includes two 13" flex hoses for 'floating' calipers. 25' is measured from the actuator to the axle 'Tee' fitting.	$149.95
		20' Tandem Axle Trailer Brake S.S. Tubing Kit #0539-007 Stock# 5329005 Hydraulic stainless steel brake tubing kit for leaf spring suspension style axles with drum brakes. 20' is measured from the actuator to the front axle 'Tee' fitting.	$159.95
		20' Tandem Axle Disc Brake S.S. Tubing Kit #0539-019 Stock# 5329026 Hydraulic stainless steel brake tubing kit for leaf spring suspension style axles with Disc brakes. Includes four 13" flex hoses for 'floating' calipers. 20' is measured from the actuator to the front axle 'Tee' fitting.	$179.95
		24' 6" Tandem Axle Trailer Brake S.S. Tubing Kit #0539-008 Stock# 5329006 Hydraulic stainless steel brake tubing kit for leaf spring suspension style axles with drum brakes. 24' 6" is measured from the actuator to the front axle 'Tee' fitti	$176.95
		25' Tandem Axle Trailer Disc Brake S.S. Tubing Kit #0539-020 Stock# 5329027 Hydraulic stainless steel brake tubing kit for leaf spring suspension style axles with Disc brakes. Includes four 13" flex hoses for 'floating' calipers. 25' is measured from the actuator to the front axle 'Tee' fitting.	$189.95
		20' Single Torsion Axle Trailer Brake Tubing Kit #0539-009 Stock# 5329007 Hydraulic brake tubing kit for Torsion suspension style axles with drum brakes. 20' is measured from the actuator to the axle 'Tee' fitting.	$69.95
		25' Single Torsion Axle Trailer Brake Tubing Kit #0539-010 Stock# 5329008 Hydraulic brake tubing kit for Torsion suspension style axles with drum brakes. 25' is measured from the actuator to the axle 'Tee' fitting.	$72.95
		20' Tandem Torsion Axle Trailer Brake Tubing Kit #0539-011 Stock# 5329009 Hydraulic brake tubing kit for Torsion suspension style axles with drum brakes. 20' is measured from the actuator to the front axle 'Tee' fitting.	$112.95
		25' Tandem Torsion Axle Trailer Brake Tubing Kit #0539-012 Stock# 5329010 Hydraulic brake tubing kit for Torsion suspension style axles with drum brakes. 25' is measured from the actuator to the front axle 'Tee' fitting.	$118.50
		3-Way Axle Union Tee W/Strap for Trailer Brakes #8032 Stock# 5329019 3/16" IF axle union TEE attaches easily with tie-strap, (1) per package	$5.49
		Tee with Mounting Bracket for Trailer Brakes #0778500 Stock# 5237068 3-way brass connector for 3/8"x24 fittings.	$9.50
		Tube Clip for Trailer Brake Lines #0936600 Stock# 5237069 Plastic clip secures metal brake hose to trailer frame.	$2.15
		13" Flexible Hydraulic Trailer Brake Hose #0777300 Stock# 5237059 13" long D.O.T. approved rubber trailer brake hose includes one male & one female 3/8"x24 metal end fitting.	$22.95
		19" Flexible Hydraulic Trailer Brake Hose #0776500 Stock# 5237060 19" long D.O.T. approved rubber trailer brake hose includes one male & one female 3/8"x24 metal end fitting.	$31.95
		4-1/2" 'AG Coated' Steel Trailer Brake Line #1086700 Stock# 5237065 3/16" O.D. AG coated steel brake line with 3/8"x24 thread steel end fittings.	$9.50
		17" 'AG Coated' Steel Trailer Brake Line #1062200 Stock# 5237063 3/16" O.D. AG coated steel brake line with 3/8"x24 thread steel end fittings.	$10.50
		30" 'AG Coated' Steel Trailer Brake Line #1061900 Stock# 5237066 3/16" O.D. AG coated steel brake line with 3/8"x24 thread steel end fittings.	$14.50
		66" 'AG Coated' Steel Trailer Brake Line #1086600 Stock# 5237064 3/16" O.D. AG coated steel brake line with 3/8"x24 thread steel end fittings.	$17.50
		15' 'AG Coated' Steel Trailer Brake Line #1086500 Stock# 5237062 3/16" O.D. AG coated steel brake line with 3/8"x24 thread steel end fittings.	$31.95
		20' 'AG Coated' Steel Trailer Brake Line #1437100 Stock# 5237061 3/16" O.D. AG coated steel brake line with 3/8"x24 thread steel end fittings.	$41.50
		Line Adapter 3/16" Male x 1/4" Female #7828 Stock# 5329011 Brass trailer brake line adapter, (1) per package	$2.49
		Line Adapter 5/16" Male x 1/4" Female #7829 Stock# 5329012 Brass trailer brake line adapter, (1) per package	$4.44
		Male Connector 3/16" IF Female x 1/8" MP (Drum) #1209800 Stock# 5237109 Brass male connector, (1) per package. Fits most drum brake master cylinders and trailer brake line fittings.	$5.29
		Male Connector 3/16" IF Female x 1/8" MP (Disc) #202X3 Stock# 5329013 Brass male connector, (1) per package. Fits most master cylinders and trailer brake line fittings.	$1.99
		Male Connector 1/4" IF Female x 1/8" MP #202X4 Stock# 5329014 Brass male connector, (1) per package	$2.69
		Male Connector 1/4" IF Female x 1/4" MP #202X4X4 Stock# 5329015 Brass male connector, (1) per package	$1.99
		Male Elbow 3/16" IF Female x 1/8" MP #402X3 Stock# 5329016 Brass male elbow fitting, (1) per package	$2.69
		Line Reducer 3/16" Female x 5/16" Male #7817 Stock# 5329017 Brass line fitting reducer, (1) per package	$3.49
		Line Union 3/16" IF x 3/16" IF #302X3 Stock# 5329018 Brass trailer brake line union, (1) per package	$1.99
		PENNZOIL 12 oz. DOT-3 trailer brake fluid #8568 Stock# 5305007 PENNZOIL 12 oz. DOT-3 trailer brake fluid is approved for use in Disc and Drum hydraulic trailer brake systems.	$3.29
