20' Single Axle Trailer Brake S.S. Tubing Kit #0539-005

Hydraulic stainless steel brake tubing kit for leaf spring suspension style axles with drum brakes.
20' is measured from the actuator to the axle 'Tee' fitting. Axle tubing lengths are 72" & 17-1/2".
3/16" O.D. stainless steel brake line with 3/8" x 24 thread brass end fittings and 45 degree Double Flare tube ends. All kits are supplied complete with hydraulic brake lines, brake hoses, hydraulic fittings and mounting hardware. Hydraulic brake lines are manufactured using double wall stainless steel tubing for extreme corrosion resistance protection.

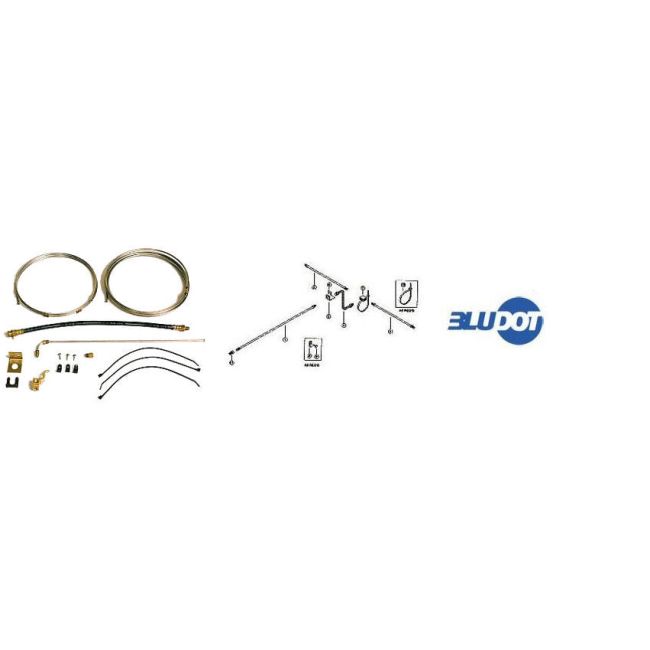

Kit Includes:

• Qty:(1) 18" Flexible Rubber Brake Line M/F
• Qty:(1) 72" Coil of Stainless Steel Brake Line w/ 3/8" x 24 thread steel fittings
• Qty:(1) 240" Coil of Stainless Steel Brake Line w/ 3/8" x 24 thread steel fittings
• Qty:(1) 17-1/2" Straight Stainless Steel Brake Line w/ 3/8" x 24 thread steel fittings and a 90° end
• Qty:(1) 3/8" "T" Fitting
• Qty:(1) "T" Hose Bracket w/ self tapping screws
• Qty:(1) Male to Female Union 1/8"P x 3/16"IF
• Qty:(3) Brake Line Keepers
• Qty:(3) Zip-ties
