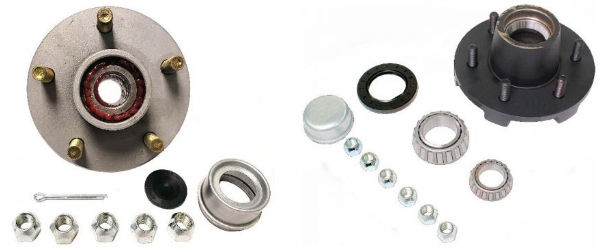

HUBS - Trailer Wheel Hub Kits

Stock# 5421002
Includes: 1 hub, 25mm metric bearings, seal, dust cap, tang washer, flat washer & lug nuts. Pre-greased hub is ready to use right out of the package. Venture uses this metric bearing hub kit on VB-1000, 1300 and VW-1200 trailer models starting in 2007.

Stock# 5256018
Includes: 1 hub, bearings, seal, dust cap, pin & lug bolts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1250 lbs. capacity each.

Stock# 5256020
Includes: 1 hub, bearings, seal, dust cap, pin & lug nuts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1250 lbs. capacity each.

Stock# 5256241
Includes: 1 hub, bearings, seal, super lube cap, pin & lug nuts. Galvanized for extreme corrosion resistance. Pre-greased hub is ready to use right out of the package. 1250 lbs. capacity each.

Stock# 5256019
Includes: 1 hub, bearings, seal, dust cap, pin & lug bolts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1250 lbs. capacity each.

Stock# 5256021
Includes: 1 hub, bearings, seal, dust cap, pin & lug nuts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1250 lbs. capacity each.

Stock# 5256184
Includes: 1 hub, bearings, seal, dust cap, pin & lug nuts. Galvanized for extreme corrosion resistance. Pre-greased hub is ready to use right out of the package. 1250 lbs. capacity each.

Stock# 5256242
Includes: 1 hub, bearings, seal, super lube cap, pin & lug nuts. Galvanized for extreme corrosion resistance. Pre-greased hub is ready to use right out of the package. 1250 lbs. capacity each.

Stock# 5500037
'Short Hub' has a hub journal length that is 3-1/2" thru the center from rear casting edge to front casting edge. Hub has 5 on 4-1/2" bolt circle with studs and races only. Short Hub unit will fit 1" or 1-1/16" spindles with optional bearing kits.

Stock# 5331199
Includes: 1 hub, bearings, grease seal, dust cap and 1/2" x 20 lug bolts. Cast Iron hub is rated for 2K capacity axles.

Stock# 5331200
Includes: One cast iron hub rated for 2K axles, two 1/16" bearings, one grease seal, one dust cap and four lug nuts.

Stock# 5256022
Includes: 1 hub, bearings, seal, dust cap, pin & lug bolts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1350 lbs. capacity each.

Stock# 5256024
Includes: 1 hub, bearings, seal, dust cap, pin & lug nuts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1350 lbs. capacity each.

Stock# 5256023
Includes: 1 hub, bearings, seal, dust cap, pin & lug bolts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1350 lbs. capacity each.

Stock# 5256025
Includes: 1 hub, bearings, seal, dust cap, pin & lug nuts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1350 lbs. capacity per hub.

Stock# 5256185
Includes: 1 hub, bearings, seal, dust cap, pin & lug nuts. Galvanized for extreme corrosion resistance. Pre-greased hub is ready to use right out of the package. 1350 lbs. capacity each.

Stock# 5256243
Includes: 1 hub, bearings, seal, super lube cap, pin & lug nuts. Galvanized for extreme corrosion resistance. Pre-greased hub is ready to use right out of the package. 1350 lbs. capacity each.

Stock# 5331202
Includes: One cast iron hub rated for 2K axles, two 1-1/16 bearings, grease seal, dust cap and lug nuts.
For use with 8" to 12" wheels only.

Stock# 5331201
Includes: One cast iron hub rated for 2K axles, two 1-1/16 bearings, grease seal, dust cap and lug nuts.
For use with 13" to 15" wheels only.

Stock# 5256026
Includes: 1 hub, bearings, seal, dust cap pin & lug nuts. Pre-greased hub is ready to use right out of the package. Cast Iron hub is rated at 1750 lbs. capacity each.

Stock# 5256183
Includes: 1 hub, bearings, seal, dust cap pin & lug nuts. Galvanized for extreme corrosion resistance. Pre-greased hub is ready to use right out of the package. 1750 lbs. capacity each.

Stock# 5256244
Includes: 1 hub, bearings, seal, super lube cap, pin & lug nuts. Galvanized for extreme corrosion resistance. Pre-greased hub is ready to use right out of the package. 1750 lbs. capacity each.

Stock# 5256237
Vortex hubs are a pre-greased "no touch" lubrication system with Extra Heavy Duty Lucas grease that requires no maintenance for up to 100,000 miles or 6 years. Kit Includes:1 hub, bearings, triple lip spring loaded grease seal, threaded dust cap w/O-ring, external zerk fitting, cotter pin & lug nuts.

Stock# 5291157
Complete 5 hole oil bath (2005 to present) hub kit for axles with tapered spindles includes hub with races, bearings, seal, washers, nut, retainer nut and cotter pin, screw on bearing protector and lug nuts.

Stock# 5331203
Includes: One cast iron hub rated for 3.5K axles, bearings, 1.718 grease seal, standard dust cap and lug nuts.
Bolt Circle: 5 on 4.5"

Stock# 5331205
One cast iron hub rated for 3.5K axles, bearings, 1.718" ID grease seal, E-Z lube grease cap with rubber plug, lug nuts and spindle nut retainer. Bolt Circle: 5 on 4.5"

Stock# 5331204
Includes: One cast iron hub rated for 3.5K axles, bearings, 1.718 grease seal, standard dust cap and lug nuts.
Bolt Circle: 5 on 4.75"

Stock# 5331063
Includes races, bearings, seal, lug nuts & dust cap, 5" Bolt Circle

Stock# 5331207
Includes: One cast iron hub rated for 3.5K axles, bearings, 1.718" ID grease seal, standard dust cap and lug nuts. Bolt Circle: 5 on 5.5"

Stock# 5331206
Includes: One cast iron hub rated for 3.5K axles, bearings, 1.718" ID grease seal, standard dust cap and lug nuts.
Bolt Circle: 6 on 5.50"

Stock# 5415032
Unpainted UFP hub with studs and races only, fits 1-3/8" straight spindle. 5 on 4-1/2" bolt circle.

Stock# 5415047
Unpainted UFP Oil bath hub with studs and races only, fits 1-3/8" straight spindle. 5 on 4-1/2" bolt circle.

Stock# 5237055
Includes races, bearings, seal, lug nuts & dust cap, 4.5" Bolt Circle. Cast Iron hub is rated at 1350 lbs. capacity each.

Stock# 5237056
Includes races, bearings, 2-1/4" ID seal, lug nuts & dust cap, 5.5" Bolt Circle

Stock# 5291158
This kit replaces grease hubs on 15", 16" and 16.5" 6-hole wheels. Complete oil bath hub kit for axles with tapered spindles includes hub with races, bearings, seal, washers, nut, retainer nut and cotter pin, screw on bearing protector and lug nuts.
NOTE: This kit will not work with the EZ Loader Sure-Lube flow thru axles (made from 1990 thru 2001)

Stock# 5331208
6 stud on 5.5" bolt circle. Includes 1-3/4"(25580) x 1-1/4"(LM67048) bearings, 2.125" ID seal, standard grease cap & lug nuts.    DEXTER Part #K08-213-90

Stock# 5331116
8 stud on 6.5" bolt circle. Includes 1-3/4"(25580) x 1-1/4"(14125A) bearings, 2.25" ID seal, EZ-Lube cap & lug nuts.    DEXTER Part #K08-231-9B

Stock# 5331210
8 stud on 6.5" bolt circle. Includes 1-3/4"(25580) x 1-1/4"(02475) bearings, 2.25" ID seal, standard grease cap & lug nuts.    DEXTER Part #K08-287-9A

Stock# 5331211
8 stud on 6.5" bolt circle. Includes 1-3/4"(25580) x 1-1/4"(02475) bearings, 2.25" ID seal, EZ-Lube cap & lug nuts.    DEXTER Part #K08-287-9B

Stock# 5331209
8 stud on 6.5" bolt circle. Includes 1-3/4"(25580) x 1-1/4"(02475) bearings, 2.25" ID seal, EZ-Lube cap & lug nuts.    DEXTER Part #K08-287-97

Stock# 5331105
8 stud on 6.5" bolt circle. Includes 2-1/4"(387A) x 1-3/4"(25580) bearings, Oil seal, Oil cap w/Rubber plug, "O" Ring, 90° cone nuts & Clamp Ring. DEXTER Part #K08-288-91

Stock# 5500110
5 stud on 5.5" bolt circle. Includes 1-3/8"(LM48548) x 1-1/4"(LM67048) bearings, 1.75" ID seal, dust cap & lug nuts.    RELIABLE Part #H25-555F

Stock# 5500111
6 stud on 6" bolt circle. Includes 1.4961" or 38mm (JL69349) x 1.25"(LM67048) bearings, 1.625" ID seal, dust cap & lug bolts.    RELIABLE Part #H35-660E

Stock# 5500113
8 stud on 8" bolt circle. Includes 1.7812" (LM603049) x 1.25"(LM67048) bearings, 2.25" ID seal, dust cap & lug nuts.
SUPPLIES LIMITED

Stock# 5500114
8 stud on 8" bolt circle. Includes 2.1654" (JLM506849) x 1.625" (LM501349) bearings, 2.75" ID seal, dust cap & lug nuts.
SUPPLIES LIMITED

Stock# 1177147
Agricultural End Unit comes with spindle and 5 stud on 5-1/2" bolt circle hub. Includes prepacked 1-3/8" x 1-1/4" bearings, 1.75" ID seal, dust cap & lug nuts.   RELIABLE AXLE Part #H25555F2
