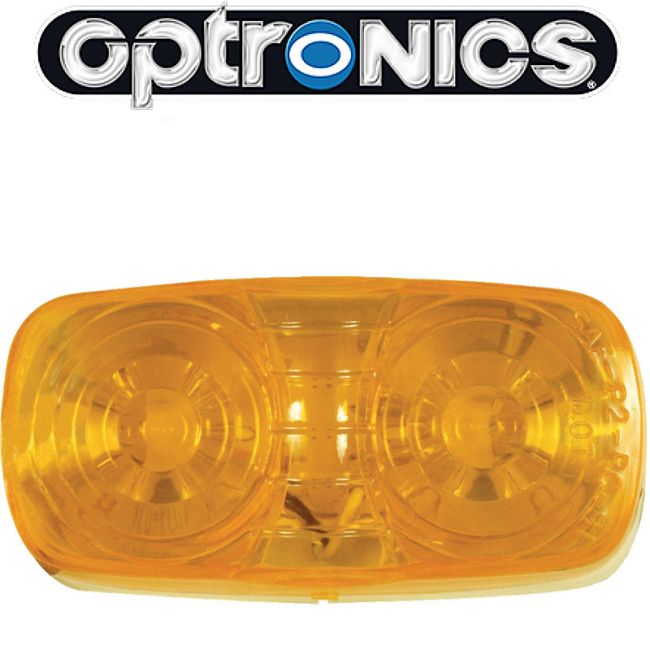

Amber LED Marker/Clearance Light #MCL45AB
Stock# 1294107
OPTRONICS #MCL45AB 'Bullseye', 2-Hole Surface Mount Amber Marker Light with 6" long 1-wire pigtail. Used on Trailers, Tractor Trailers & Truck Cabs.
Dimensions: W = 4-1/16" H = 2-1/8" D = 1"
OPTRONICS #MCL45AB 'BULLSEYE', 2-Hole Surface Mount Amber Marker Light with White Base. Commonly used on Commercial Vehicles, Heavy Duty Trucks, Cargo Trailers and Recreational Trailers.
All Optronics LED truck and trailer lighting products meet or exceed all applicable DOT/SAE/FMVSS/CMVSS 108 requirements. Optronics LED lighting products are covered under a Lifetime Warranty.
PC-RATED: PC-Rated Lamps combine the Clearance and Side Marker functions to produce a 90 degree angle of light left and right of center when properly mounted on a 45 degree angle.
6 inch long 1-wire pigtail included
Dimensions: W = 4-1/16" H = 2-1/8" D = 1"
LED Quantity: 10
Voltage: 12.8v
Current Draw: .087 amps
Connection: 1-wire pigtail from back of light with base slots for surface wiring option. Grounds thru one mounting bolt.
Product Name | Amber LED Marker/Clearance Light #MCL45AB |
---|
