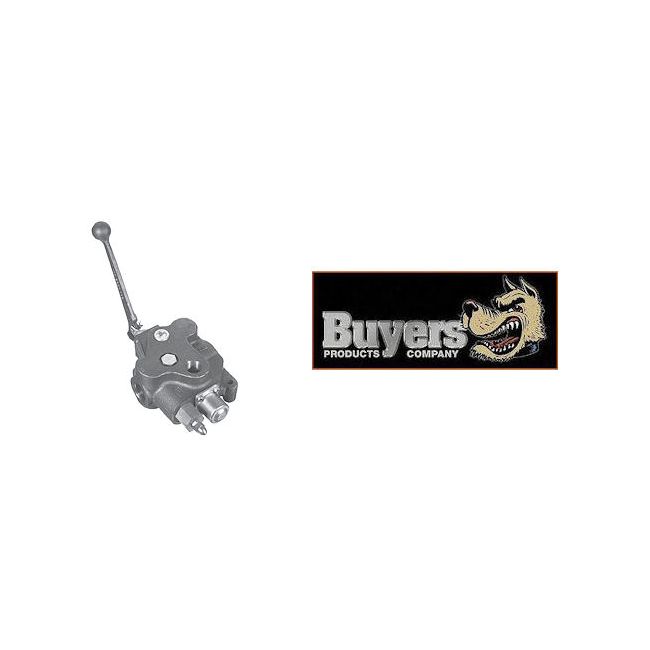

Buyers 3-Way Hydraulic Control Valve, Detent Out #HV13PGOOD0
Stock# 1330605BP
Buyers 3-Way (Power Up, Gravity Down) Hydraulic Directional Control Valve is detent out, which means that the valve spools stay in position until changed by operator. This is a single spool unit with NO Power Beyond and a rated working pressure of 2500 PSI (172 bar).
Buyers 3-Way (Power Up, Gravity Down) Hydraulic Directional Control Valve is detent out, which means that the valve spools stay in position until changed by operator. This is a single spool unit with no Power Beyond and a rated working pressure of 2500 PSI (172 bar). The valve also features integral load holding check valves which will prevent reverse flow through valve when shifting.
Specifications:
- Port Size and Type: All- 1-1/16" #12 SAE
- Max Shock and Surge Pressure 4000 PSI (276 bar)
- Rated Flow Capacity 30 GPM (114 l/m)
- Max Spool Leakage (1000 PSI) 16 cc/min
- Mounting, Any Position 3 Mounting Holes for 3/8" bolts.
VH1 Handle Sold Separately
ITEM SHIPS FROM REMOTE WAREHOUSE TO THE CONTIGUOUS UNITED STATES ONLY
| Product Name | Buyers 3-Way Hydraulic Control Valve, Detent Out #HV13PGOOD0 |
|---|
