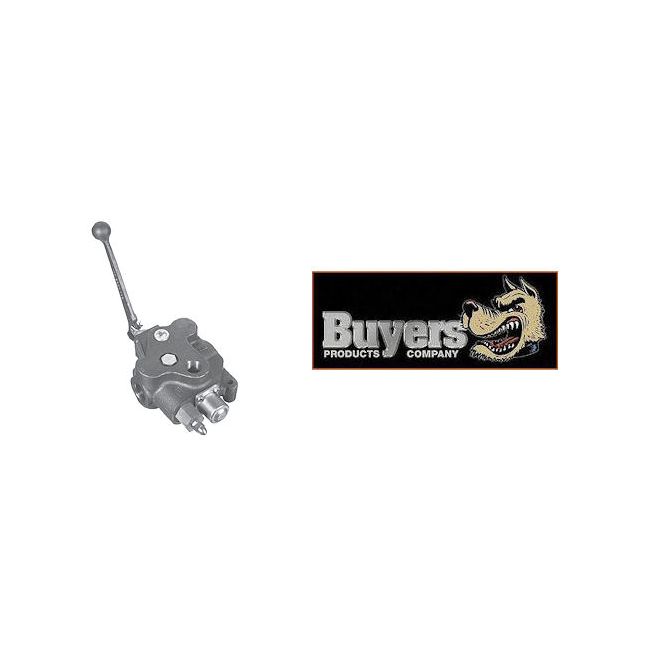

BUYERS PRODUCTS 4-Way Hydraulic Control Valve, Center Detent #HV11BGOOD0
Stock# 1330609BP
BUYERS PRODUCTS 4-Way (Power Up, Power Down) Hydraulic Directional Control Valve is center deten. This is a single spool unit with NO Power Beyond and a rated working pressure of 2,500 PSI (172 bar).
$339.95
SKU
1330609BP
BUYERS PRODUCTS 4-Way (Power Up, Power Down) Hydraulic Directional Control Valve is center detent. This is a single spool unit with no Power Beyond and a rated working pressure of 2,500 PSI (172 bar). The valve also features integral load holding check valves which will prevent reverse flow through valve when shifting.
Specifications:
- Port Size and Type: All - 1-1/16" #12 SAE
- Max Shock and Surge Pressure 4,000 PSI (276 bar)
- Rated Flow Capacity 30 GPM (114 l/m)
- Max Spool Leakage (1,000 PSI) 16 cc/min
- Mounting, Any Position 3 Mounting Holes for 3/8" bolts.
VH1 Handle Sold Separately
ITEM SHIPS FROM REMOTE WAREHOUSE TO THE CONTIGUOUS UNITED STATES ONLY
Brand
Buyers Products
Manufacturer Part Number
HV11BGOOD0
