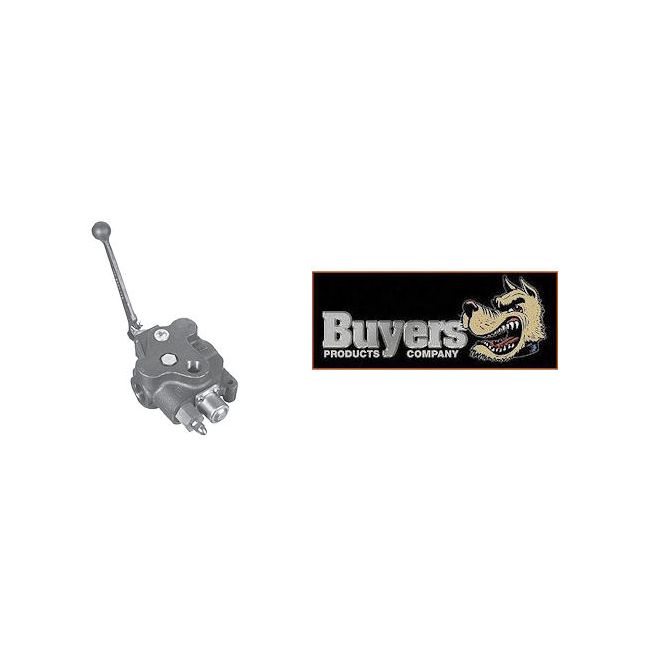

Buyers 4-Way Hydraulic Control Valve, Spring Center #HV11AGOOF0

Stock# 1330608BP
Buyers 4-Way (Power Up, Power Down) Hydraulic Directional Control Valve is spring centered, which means that the spool returns to neutral when operator releases. This is a single spool unit with NO Power Beyond and a rated working pressure of 2500 PSI (172 bar).

$279.95

SKU

1330608BP

Details

Buyers 4-Way (Power Up, Power Down) Hydraulic Directional Control Valve is spring centered, which means that the spool returns to neutral when operator releases. This is a single spool unit with no Power Beyond and a rated working pressure of 2500 PSI (172 bar). The valve also features integral load holding check valves which will prevent reverse flow through valve when shifting.

Specifications:

Port Size and Type: In/Out - 3/4" NPTF Cyl. 1-1/16 SAE # 12
Max Shock and Surge Pressure 4000 PSI (276 bar)
Rated Flow Capacity 30 GPM (114 l/m)
Max Spool Leakage (1000 PSI) 16 cc/min
Mounting, Any Position 3 Mounting Holes for 3/8" bolts.

VH1 Handle Sold Separately

ITEM SHIPS FROM REMOTE WAREHOUSE TO THE CONTIGUOUS UNITED STATES ONLY
