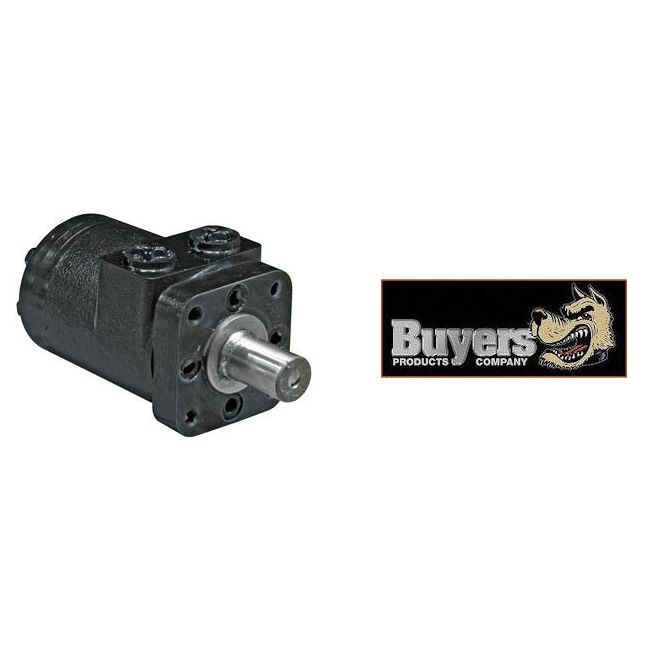

Buyers HydraStar™ Series Hydraulic Motor, 2.8 Displacement #CM004P
Stock# 1330587BP
Buyers HydraStar™ Series Hydraulic Motor has a spool valve design with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port. This motor is designed for a medium duty application and the directions of the shaft rotation and shaft speed are controllable.
Buyers HydraStar™ Series Hydraulic Motor has a spool valve design with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port. This motor is designed for a medium duty application and the directions of the shaft rotation and shaft speed are controllable.
MOTOR SPECS:
- Displacement cm3/r [in3/r]: 43 [2.8]
- Max Speed (RPM) @ Continuous Flow: 969
- Flow LPM [GPM]
- Continuous: 45 [12]
- Intermittent: 53[14]
- Torque LPM [lb-in]
- Continuous: 73 [650]
- Intermittent**: 99 [876]
- Min. Starting Torque Nm [lb-in]
- Cont. Pressure: 59 [520]
- Int. Pressure: 81 [720]
- Pressure Δ Bar [Δ PSI]
- Continuous*: 124 [1800]
- Intermittent*(**): 165 [2400]
COMPARABLE MOTORS:
- CHAR-LYNN®:101-1001
- TRW ROSS: MG-03-13-10
- PRINCE: ADM504RP
- ORBMARK®: HD104W4FSWP
- WHITE®: RS-03-0101
ITEM SHIPS FROM REMOTE WAREHOUSE TO THE CONTIGUOUS UNITED STATES ONLY
| Product Name | Buyers HydraStar™ Series Hydraulic Motor, 2.8 Displacement #CM004P |
|---|
* Maximum intermittent pressure at motor inlet port of 172 Bar [2500 PSI] without regard to A Bar [A PSI] and/or back pressure ratings or combination thereof.
** A simultaneous maximum torque and maximum speed NOT recommended.
Maximum Case Pressure, without Case Drain is 103 Bar [1500 PSI]
6B Splined or Tapered shafts are recommended whenever operating above 282 Nm [2500 lb-in] of torque, especially for those applications subject to frequent reversals.
ΔBar [ΔPSI] – True pressure difference between inlet port and outlet port.
Continuous Rating – Motor may be run continuously at these ratings.
Intermittent Operation – 10% of every minute.
Recommended Fluids – Premium quality, anti-wear type hydraulic oil. Minimum oil viscosity (at operating temperature) should be the highest of the following:
100 SUS or
300 x Bar = SUS [20 x PSI = SUS]
RPM RPM
Recommended Maximum System Operating Temperature is 82° C [180° F]
Recommended Filtration – per ISO Cleanliness Code, level 18/13
To assure best motor life, run motor for approximately one hour at 30% of rated pressure before application to full load.
Be sure motor is filled with fluid prior to any load applications.
