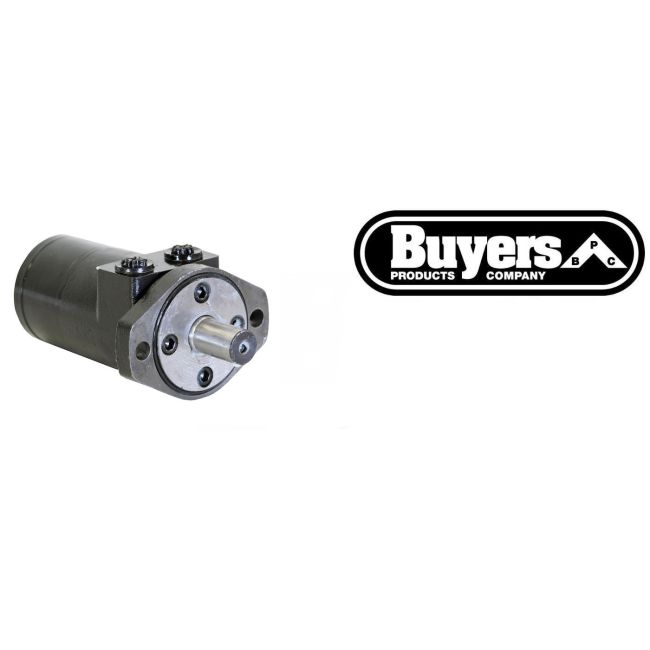

Buyers HydraStar™ Series Hydraulic Motor, 17.9 Displacement #CM082P
Stock# 1330600BP
Buyers HydraStar™ Series Hydraulic Motor have a spool valve design with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port. This motor is designed for a medium duty application and the directions of the shaft rotation and shaft speed are controllable.
Buyers HydraStar™ Series Hydraulic Motor has a spool valve design with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port. This motor is designed for a medium duty application and the directions of the shaft rotation and shaft speed are controllable.
MOTOR SPECS:
- Compares To 101-1032-009
- Flow (Continuous) 15 GPM
- Input Mount Type 2 Bolt
- Material Cast Iron
- Maximum Case Pressure (Without Case Drain) 1500 PSI
- Maximum Speed (Continuous) 192 RPM
- Pilot Diameter 3.25 "
- Shaft Keyway 0.25 "
- Shaft Type Straight
- Displacement 17.9 in.²
- Flow (Intermittent) 20 GPM
- Torque Rating (Continuous) 3110 Inch Pound
- Torque Rating (Intermittent) 3610 Inch Pound
- Port Size 1/2 NPT
- Shaft Size 1.00 "
- Maximum Speed at Continuous Flow 192 RPM
- Maximum Speed at Intermittent Flow 203 RPM
- Minimum Starting Torque (Continuous Pressure) 2920 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) 3610 Inch Pound
- Pressure Δ Bar (Continuous) 1250 PSI
- Pressure Δ Bar (Intermittent) 1500 PSI
- Min Order Qty 1
- Multiple Sale Qty 1
- Product Code 621
- Sell Pack Type Box
- Shipping Weight 14.870
- UPC 724920111904
COMPARABLE MOTORS:
- CHAR-LYNN®: 101-1032
- TRW ROSS: MG -24-12-10
- PRINCE: ADM4002RP
- ORBMARK®: HD132W2FSWP
- WHITE®: RS-24-0301
ITEM SHIPS FROM REMOTE WAREHOUSE TO THE CONTIGUOUS UNITED STATES ONLY
| Product Name | Buyers HydraStar™ Series Hydraulic Motor, 17.9 Displacement #CM082P |
|---|
* Maximum intermittent pressure at motor inlet port of 172 Bar [2500 PSI] without regard to A Bar [A PSI] and/or back pressure ratings or combination thereof.
** A simultaneous maximum torque and maximum speed NOT recommended.
Maximum Case Pressure, without Case Drain is 103 Bar [1500 PSI]
6B Splined or Tapered shafts are recommended whenever operating above 282 Nm [2500 lb-in] of torque, especially for those applications subject to frequent reversals.
ΔBar [ΔPSI] – True pressure difference between inlet port and outlet port.
Continuous Rating – Motor may be run continuously at these ratings.
Intermittent Operation – 10% of every minute.
Recommended Fluids – Premium quality, anti-wear type hydraulic oil. Minimum oil viscosity (at operating temperature) should be the highest of the following:
100 SUS or
300 x Bar = SUS [20 x PSI = SUS]
RPM RPM
Recommended Maximum System Operating Temperature is 82° C [180° F]
Recommended Filtration – per ISO Cleanliness Code, level 18/13
To assure best motor life, run motor for approximately one hour at 30% of rated pressure before application to full load.
Be sure motor is filled with fluid prior to any load applications.
