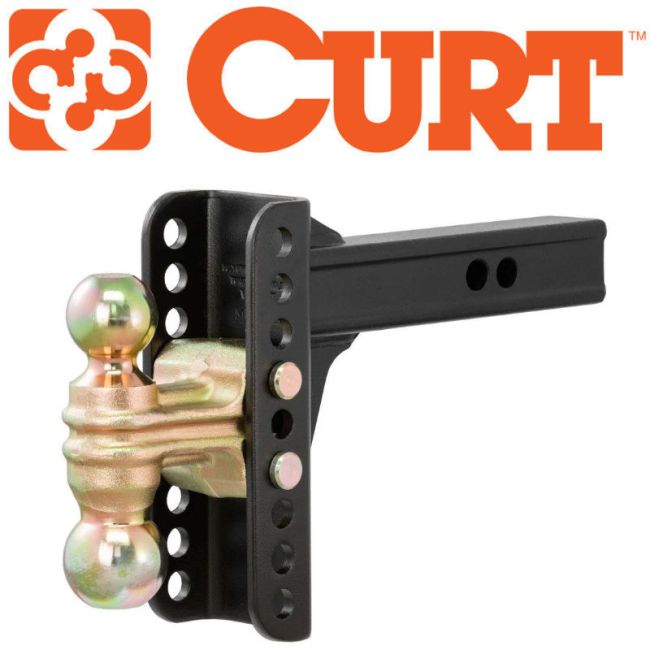

CURT HD Adjustable Channel 2" and 2-5/16" Dual-Ball Mount #45900

Curt adjustable dual ball mount offers versatile towing options. It features standard 2" and 2-5/16" diameter trailer balls to fit two different size trailer couplers. The entire head securely attaches to the adjustable shank using the included hitch pins and clips, and these hitch pins can also be replaced with a hitch lock set for additional security. This adjustable channel mount comes with a 2" shank to fit any 2" x 2" receiver hitch. The shank has two hitch pin holes to adjust the length of the ball mount from 11" to 12". This provides extra clearance, as needed, for the rear bumper, a spare tire or other obstructions.

The channel mount is set with a series of vertical holes to mount the included dual-ball. The holes are spaced 1" apart, allowing the ball mount to perfectly suit the trailer for smooth, stable towing. This channel mount offers a maximum drop of 6", and it can also flipped for a maximum rise of 5-1/4". This model is constructed from high-strength forged steel and rated for a maximum gross trailer weight capacity of 10,000 lbs. for the 2" ball and 14,000 lbs. for the 2-5/16" ball. This makes it an excellent choice for livestock haulers, large flatbed trailers, deluxe travel trailers and much more (never exceed the weight ratings of the lowest-rated towing component).

CURT adjustable channel ball mounts are not only built for tough jobs, but they are also engineered to offer smooth, quiet towing. Built into the adjustable shank is an anti-rattle mechanism -- a rubber bumper that goes between the shank channel and the trailer ball attachment. This anti-rattle bumper greatly reduces vibrations and noise coming from the coupling point, providing a smoother, quieter ride for the road ahead.

Features:

• Mounts on trailer hitches with a 2" x 2" receiver tube opening
• Adjustable channel mount allows for precise trailer leveling
• Shank can be flipped for a max rise of 5-1/4" and drop of 6"
• 2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 14,000 lbs.
• Two hitch pin holes provide shank lengths of 11" or 12"
• Built-in anti-rattle helps promote quiet towing
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

Notes:

• Includes pins & clips
• Patent# US8,033,563
