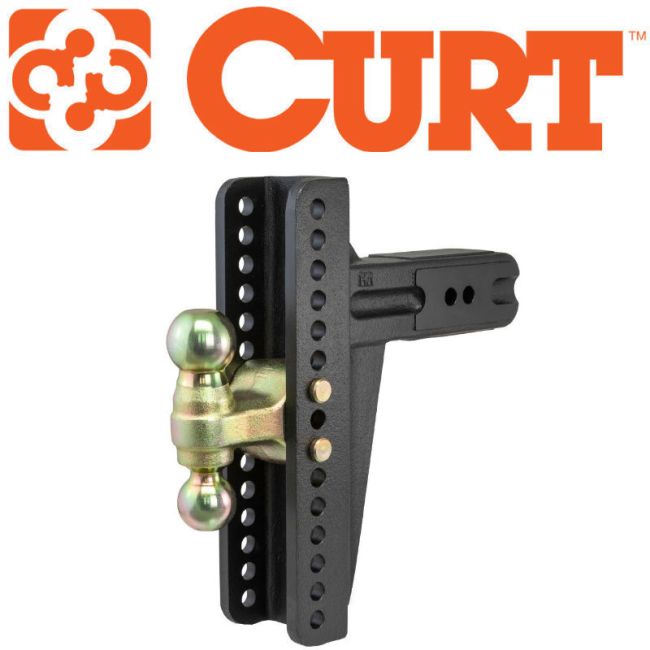

CURT Deep HD Adjustable Channel Dual-Ball Mount, 2", 2-5/16" #45928

Curt dual-ball head of this channel mount offers versatile towing options. It features standard 2" and 2-5/16" diameter trailer balls to fit two different size trailer couplers. The entire head securely attaches to the adjustable shank using the included hitch pins and clips, and these hitch pins can also be replaced with a hitch lock set for additional security.

This adjustable channel mount comes with a 3" shank to fit any 3" x 3" receiver hitch. The shank features rounded edges for easier insertion, and it has two hitch pin holes to adjust the length of the ball mount from 11" to 12". This provides extra clearance, as needed, for the rear bumper, a spare tire or other obstructions.

The channel mount is set with a series of vertical holes to mount the included dual-ball. The holes are spaced 1" apart, allowing the ball mount to perfectly suit the trailer for smooth, stable towing. This deep drop channel mount offers a maximum drop of 10-5/8", and it can also flipped for a maximum rise of 8-5/8".

For safety you can be confident in, each CURT adjustable channel mount design undergoes strict testing procedures. This model is constructed from high-strength forged steel and rated for a maximum gross trailer weight capacity of 10,000 lbs. for the 2" ball and 21,000 lbs. for the 2-5/16" ball. This makes it an excellent choice for livestock haulers, large flatbed trailers, deluxe travel trailers and much more (never exceed the weight ratings of the lowest-rated towing component).

Features:

• Mounts on trailer hitches with a 3" x 3" receiver tube opening
• Adjustable channel mount allows for precise trailer leveling
• Shank can be flipped for a max rise of 8-5/8" and drop of 10-5/8"
• 2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 21,000 lbs.
• Two hitch pin holes provide shank lengths of 11" or 12"
• Built-in anti-rattle helps promote quiet towing
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

Notes:

• Includes pins & clips
• Patent# US8,033,563
