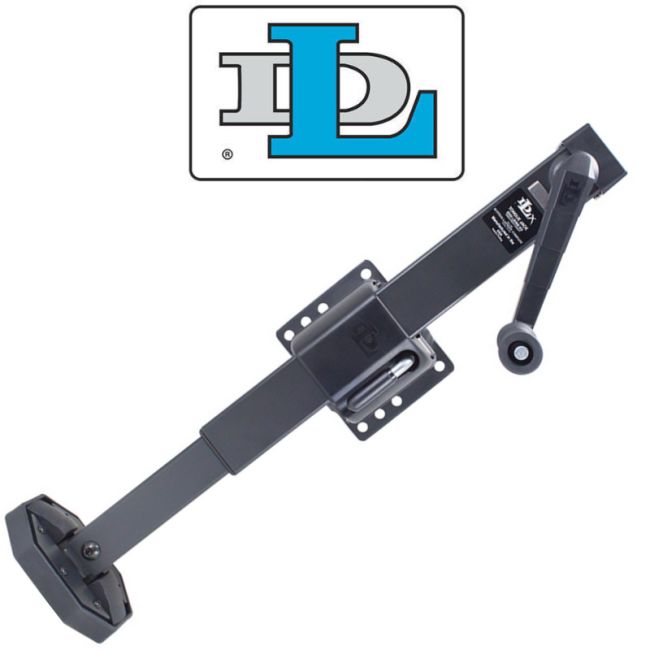

DUTTON-LAINSON 2,000 lb. DLx-SF Swivel Mount Trailer Tongue Jack #22340

Stock# 1568094
DUTTON-LAINSON DLx-SW Side Mount Swivel Mount Trailer Tongue Jack features a 2,000 pound capacity, a flat plastic foot, stable formed heavy-gauge steel construction, 12" of travel, and it includes all necessary mounting hardware. All mounts fit up to a 3" x 5" trailer frame.

$314.95

SKU

1568094

Details

DUTTON-LAINSON DLx-SW Side Mount Swivel Mount Trailer Tongue Jack features a 2,000 pound capacity, a flat plastic foot, stable formed heavy-gauge steel construction, 12" of travel, and it includes all necessary mounting hardware. All mounts fit up to a 3" x 4" trailer frame.

Specifications:

Dutton-Lainson® swivel marine tongue jack for boat and other trailer applications
2,000 lb. capacity
12" total travel
29-1/2" maximum tongue height
Side wind handle with extra heavy screw drive and ergonomic handle grip
Unique articulating high density plastic foot with steel brackets
Easily swivels up for towing or down for stowing and locks in place in either position
U.S. patents 10611201, D870598, D871973, D871974, D871975, and 11173760
Fits square tongues up to 3" x 4"
Includes all necessary bolt-on mounting hardware
Made in the U.S.A.

In addition to the standard D-L® marine jack features listed above, the DLx-SF marine jack also offers this set of exclusive features:

Inner tube, outer tube, and mounting plate have powder coated matte black finish over zinc plating
Vinyl sleeve on 1/2" swivel pin makes swiveling more comfortable
Bushing between tubes prevents scratching and tightens fit
Premium cushioned handle grip is softer and more comfortable
Unique top cap mounts over outer tube and is held in place with a screw
Premium handle cover
Unique swivel bracket cover protects swivel parts, enhances look, and allows pin to rotate 90 degrees and then back into a recessed storage position
U.S.-made square tubing
