DEEMAXX 10" Disc Brake Set, S.S. (Slip On) #DBSO-3.5K-SS

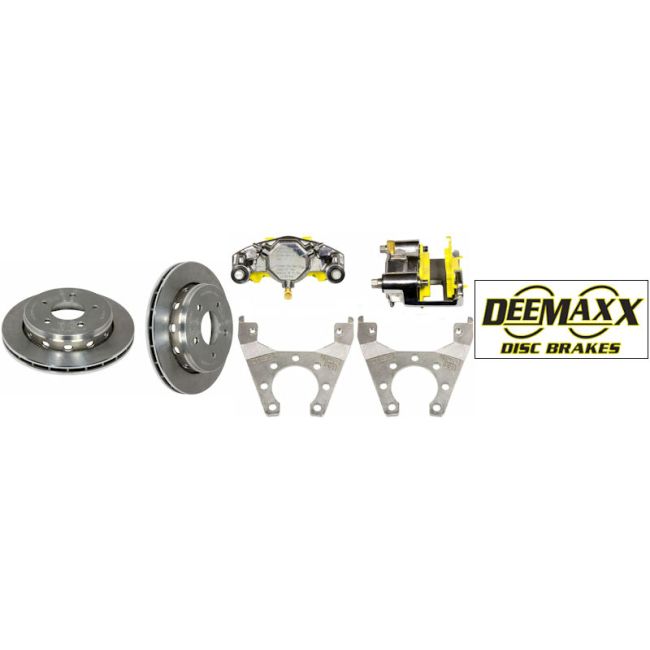

Kit Includes (2) DEEMAXX 10" Stainless Steel Vented Rotors, (2) Stainless Steel Calipers and Stainless Steel Pads, (2) Stainless Steel Mounting Brackets and (4) Caliper Pins.
One kit required per axle. 7 Year S.S. WARRANTY

See 'Related Items' below for options to complete your installation

Stainless steel brakes are the best type of brakes that can be used on any marine trailer. 'Hat Style' or 'Slip On' rotors fits over standard wheel hub (Not Included). The rotor is frequently stud piloted and is a loose fit on the hub. It is held in place by the wheel/wheel nuts. The rotor is a traditional vented style with additional vent holes in the hub cavity to help dissipate heat. The Caliper and the Caliper Bracket are stainless steel and they mount to 4 bolt brake flange and fits inside 14" and larger wheels.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 10" VENTED
REPLACES DRUM DIAMETER: 10"
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (14" & Larger Wheels)
AXLE RATING: 3500 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs.
