DEEMAXX 12" Disc Brake Set, MAXX/S.S. (Integral) #DBI-6K-MAXX-SS

Stock# 7103016

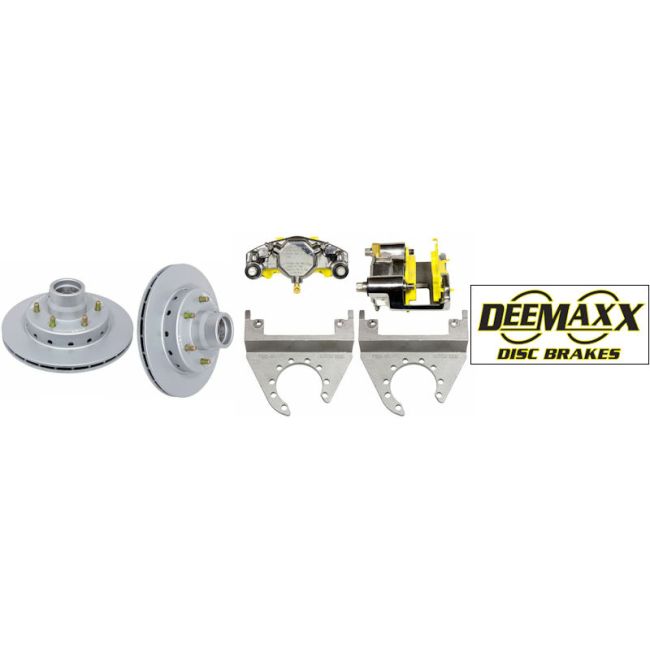

Kit Includes (2) DEEMAXX 12" MAXX COATED Integral 6 Lug Vented Rotors, (2) Stainless Steel Calipers and Stainless Steel Pads, (2) MAXX Mounting Brackets and (4) Caliper Pins. Bearings, seal, and cap not included. One kit required per axle.

$666.00
SKU
7103016

Kit Includes (2) DEEMAXX 12" MAXX COATED Integral 6 Lug Vented Rotors, (2) Stainless Steel Calipers and Stainless Steel Pads, (2) MAXX Mounting Brackets and (4) Caliper Pins. Bearings, seal, and cap not included in this kit. One kit required per axle. 7 YEAR WARRANTY

See 'Related Items' below for options to complete your installation

MAXX plating, during a standard salt spray test, will only begin to form rust at 1008 hours. Integral type Rotor/Hubs combine the hub and rotor into one unit and are balanced as one unit, which offers a smoother ride. Wheel studs are pressed into the rotor. The rotor is a traditional vented style with additional vent holes in the hub cavity to help dissipate heat. The Caliper is Stainless Steel and the Caliper Bracket is MAXX coated. They mount to 5 bolt brake flange and fits inside 15" and larger wheels.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 12" VENTED
REPLACES DRUM DIAMETER: 12"
# OF STUDS: 6 @ 1/2" diameter
BOLT CIRCLE: 5-1/2" (15" & Larger Wheels)
AXLE RATING: 6,000 lbs.
RACES INCLUDED: 25520-15245
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS



Brand
Deemaxx Components
Manufacturer Part Number
DBI-6K-MAXX-SS
