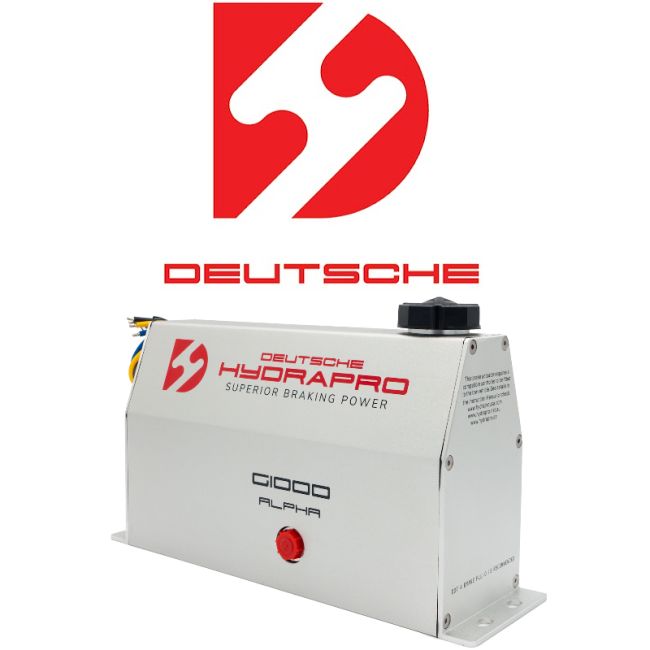

DEUTSCHE Hydrapro 1,000 PSI Electric / Hydraulic Actuator #G1000A
Stock# 5469001 FREE GROUND SHIPPING TO LOWER-48 U.S.
Alpha G-1000 electric over hydraulic brake actuator is the perfect combination of style and durability. This top-quality brake line fitting stands up against challenging conditions so that you can rely on it for exceptional performance. In addition, all Deutsche Hydrapro 1,000 psi brake actuators have a swift response time, reaching 1,000 psi in 0.118 seconds. Best used with DRUM BRAKES (Under 8,000 lbs. Axle Capacity).
Alpha G-1000 electric over hydraulic brake actuator is the perfect combination of style and durability. This top-quality brake line fitting stands up against challenging conditions so that you can rely on it for exceptional performance. With its compact design, installation is easy, and the 360-degree movement capability of the brake line fittings means you can connect your brake line from any mounting position. In addition, all Deutsche Hydrapro 1,000 psi brake actuators have a swift response time, reaching 1,000 psi in 0.118 seconds. Best used with DRUM BRAKES (Under 8,000 lbs. Axle Capacity).
Features:
- This electric-over-hydraulic brake actuator has a high-powered DC motor and quality pump with minimal moving parts.
- Weatherproof, anodized alloy case protects components from external elements (such as saltwater, extreme temperatures, and poor road conditions).
- Anodized, T6-grade extruded alloy housing protects from different environments and has a great aesthetic design.
- Independently sealed fluid tank.
- Conformal coating on the circuit board is designed to provide extra protection from moisture.
- Two-year no-hassle warranty.
Specifications:
- Alpha G-1000, electric over hydraulic brake actuator
- DOT Compliant
- Trailer Mounted
- Application: Drum brakes for single and tandem trailers
- Distance Between Mounting Holes: 10.95” & 1.38” (278mm & 35mm)
- Mounting Hole Diameter 1.2cm x 0.8cm (12 x 8 mm) slot
- Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting)
- DOT 3 & DOT 4 Brake Fluid Compatible (Do not use Super DOT 4 or DOT 4+)
- Fluid Capacity of 15.7 oz
- Power: 12V DC (min 30 amp feed)
- Max Current Draw at full pressure approximately 18-24 amps.
- Wire Configuration:
- Black: 12-volt power
- Blue: brake controller
- Yellow: breakaway
- White: ground
- Wire Gauge Recommendation
- A minimum of 10 gauge on black and white
- A minimum 12 gauge on blue and yellow
- Dimensions:
- Length: 10” (255mm)
- Height: 6” (152mm)
- Width: 3.6” Base / 1.7” Top (90mm Base / 44mm Top)
- Mounting centers: 10.9” L and 1.6” W (275mm and 40mm)
