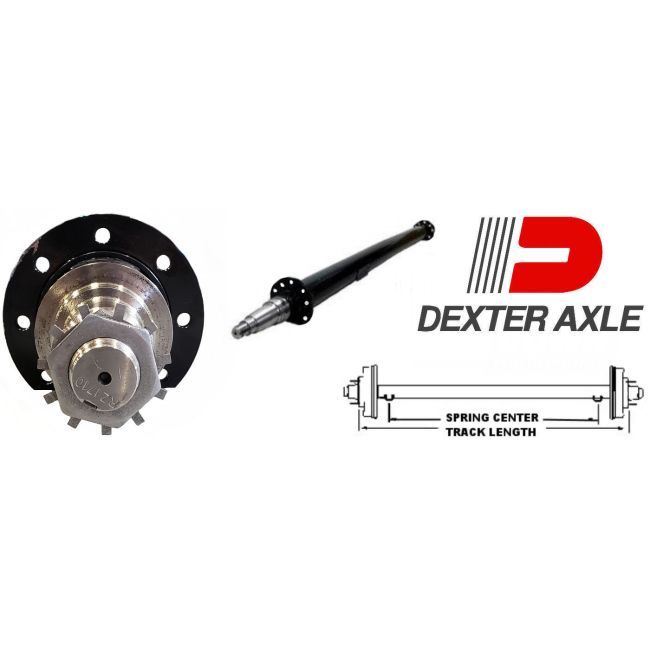

DEXTER 74" Round Tube Straight Trailer Axle (10,000 lb.) #8257015
Stock# 5432104
Track Length = 74" Overall = 79.82" Spring Center (Single Wheel) = 41"-50.5" Spring Center (Dual Wheel) = 41"-48" Includes pre-attached 7-hole brake mounting flanges. DEXTER 5" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 5" Diameter x 1/4" wall round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (7-hole).
Axle Type: Round/Straight
Load Rating: 10,000 lbs.
Track Length: 74" Hub Face to Hub Face
Spring Center (Single Wheel): 41" - 50.5"
Spring Center (Dual Wheel): 41" - 48"
Overall Length: 79.82"
Outside to Outside Brake Flange: 62-15/16"
Spindle Size: 2-1/4" x 1-3/4" (grease seal lip I.D. = 2.875")
| Product Name | DEXTER 74" Round Tube Straight Trailer Axle (10,000 lb.) #8257015 |
|---|
