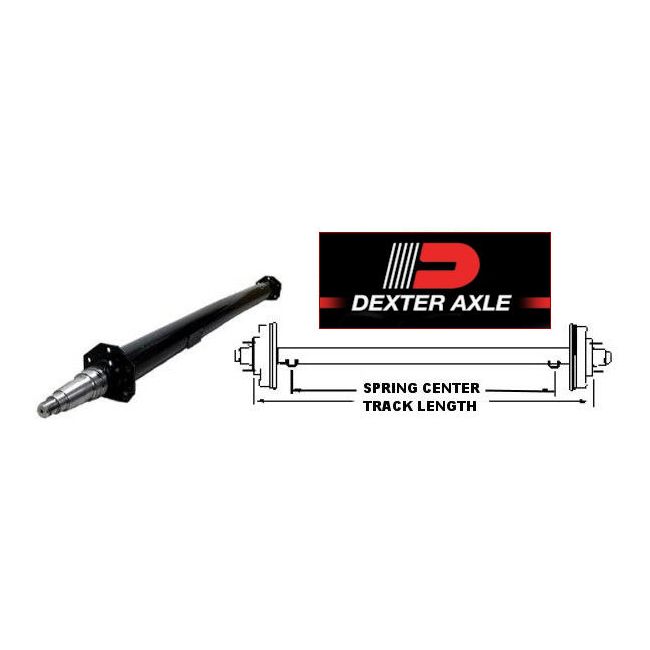

DEXTER 86" Round Tube Straight Trailer Axle (5,200 lb.) #4766691
Stock# 5432028
Track Length = 86" Overall = 91.82" Spring Center = 67"-73" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (5-hole).
Axle Type: Round/Straight
Load Rating: 5,200 lbs.
Track Length: 86" Hub Face to Hub Face
Spring Center: 67" - 73"
Overall Length: 91.82"
Outside to Outside Brake Flange: 77-1/4"
Spindle Size: 1-3/4" x 1-1/4" (grease seal lip I.D. = 2.25")
| Product Name | DEXTER 86" Round Tube Straight Trailer Axle (5,200 lb.) #4766691 |
|---|
