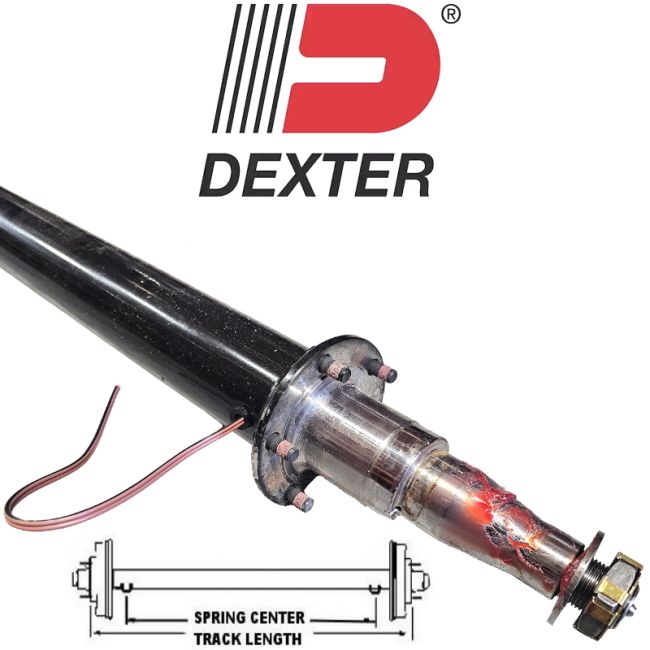

DEXTER 94" Round Tube Straight Trailer Axle (7,000 lb.) #13074897
Stock# 5432122
Track Length = 94" Overall = 100" Spring Center = 80" Includes pre-attached 5-hole brake mounting flanges. 3" diameter round tube trailer axle by Dexter includes spindle nuts, nut retainers, and D-washers.
CLICK FOR AXLE MEASURING INSTRUCTIONS
Dexter 3" Diameter x 5/16 wall round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, nut retainers, and D-washers. CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (5-hole).
Axle Type: Round/Straight
Load Rating: 7,000 lbs.
Track Length: 94" Hub Face to Hub Face
Spring Center: 80"
Overall Length: 100"
Spindle Size: 1-3/4" x 1-1/4" (grease seal lip I.D. = 2.25")
| Product Name | DEXTER 94" Round Tube Straight Trailer Axle (7,000 lb.) #13074897 |
|---|
