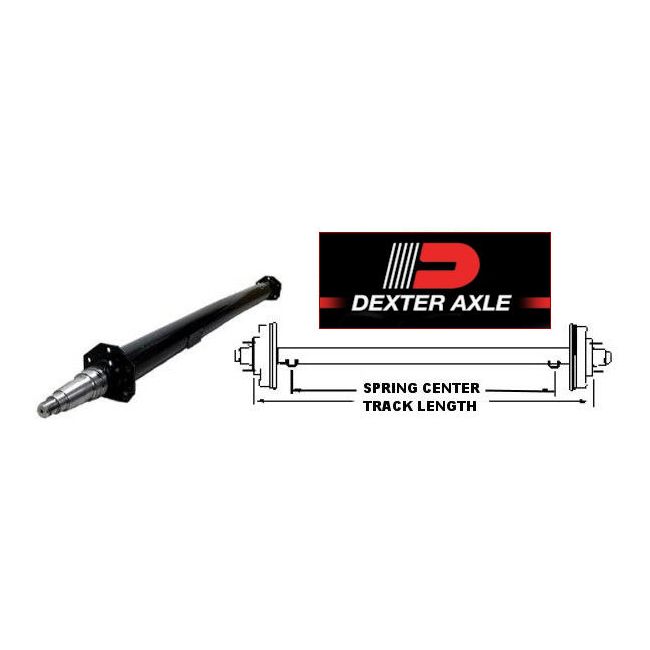

DEXTER 96" Round Tube Straight Trailer Axle (7,000 lb.) #4766718
Stock# T5432041
Track Length = 96" Overall = 101.82" Spring Center = 78"-83" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck
for details)
CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 3" Diameter x 5/16 wall round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (5-hole).
Axle Type: Round/Straight
Load Rating: 7,000 lbs.
Track Length: 96" Hub Face to Hub Face
Spring Center: 78" - 83"
Overall Length: 101.82"
Outside to Outside Brake Flange: 87-3/8"
Spindle Size: 1-3/4" x 1-1/4" (grease seal lip I.D. = 2.25")
Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck for details)
| Product Name | DEXTER 96" Round Tube Straight Trailer Axle (7,000 lb.) #4766718 |
|---|
