GOLD LINE Rolling Lobe Air Spring #G2299039200

Stock# 5351061
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Hendrickson S-11650, Hendrickson S-2064, Hutchens H-9424-01, Hutchens 9424-03, Navistar/Fleetrite 554766C1, Raydan 211-00-010, Ridewell 1013589039C, Watson & Chalin AS-001, Triangle 8311, Goodyear 1R12-095, Firestone W01-358-9039 and Contitech 9 10-10 P 311

$101.50
SKU
5351061
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Hendrickson S-11650, Hendrickson S-2064, Hutchens H-9424-01, Hutchens 9424-03, Navistar/Fleetrite 554766C1, Raydan 211-00-010, Ridewell 1013589039C, Watson & Chalin AS-001, Triangle 8311, Goodyear 1R12-095, Firestone W01-358-9039 and Contitech 9 10-10 P 311

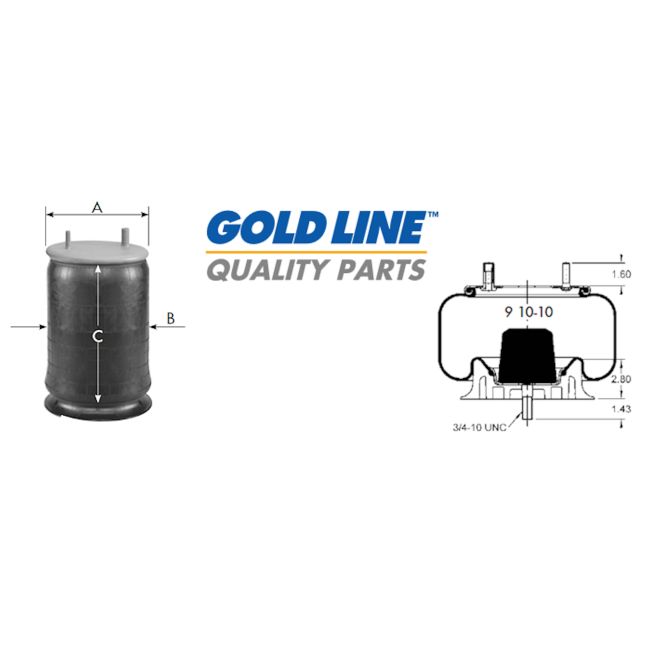

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 10"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 5570
Load @ 100 psi: 7000
Natural Frequency (cpm): 81
Min. Height: 5.1"
Max. Height: 12.9"
Max. Diameter: 12.6"
Brand
Gold Line
Manufacturer Part Number
G2299039200
