GOLD LINE Rolling Lobe Air Spring #G2299082200
Stock# 5351067
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Hendrickson S-2066, Hendrickson S-4041, Hendrickson S-11651, Hendrickson S-13159, Hendrickson B-12514-007, Hutchens H-9630-01, Ridewell 1003589082C, Watson & Chalin AS-0011, Triangle 8310, Goodyear 1R12-092, Firestone W01-358-9082 and Contitech 9 10-16 P 310.
SUPPLIES LIMITED
Special Price
$40.00
was
$134.95
SKU
5351067
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: Hendrickson S-2066, Hendrickson S-4041, Hendrickson S-11651, Hendrickson S-13159, Hendrickson B-12514-007, Hutchens H-9630-01, Ridewell 1003589082C, Watson & Chalin AS-0011, Triangle 8310, Goodyear 1R12-092, Firestone W01-358-9082 and Contitech 9 10-16 P 310.

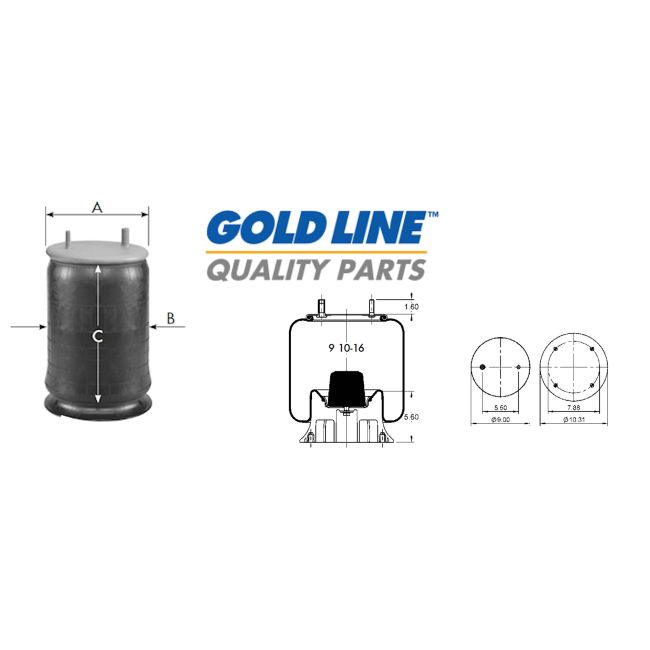

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 16" & 16.5"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: Hendrickson S-2066, Hendrickson S-4041, Hendrickson S-11651, Hendrickson S-13159, Hendrickson B-12514-007, Hutchens H-9630-01, Ridewell 1003589082C, Watson & Chalin AS-0011, Triangle 8310, Goodyear 1R12-092, Firestone W01-358-9082 and Contitech 9 10-16 P 310.
Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 16" & 16.5"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 5510
Load @ 100 psi: 7160
Natural Frequency (cpm): 70
Min. Height: 7.9"
Max. Height: 21.6"
Max. Diameter: 12.6"
Load @ 100 psi: 7160
Natural Frequency (cpm): 70
Min. Height: 7.9"
Max. Height: 21.6"
Max. Diameter: 12.6"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2299082200
