GOLD LINE Rolling Lobe Air Spring #G2299265200
Stock# 5351071
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Hendrickson C20413, Hendrickson S-20124, Loadguard SC2759, Volvo 85101155, Triangle 8435, Goodyear 1R12-375, Firestone W01-358-9265, and Contitech 9 10-19 P 435.
SUPPLIES LIMITED
Special Price
$45.00
was
$144.99
SKU
5351071
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: Hendrickson C20413, Hendrickson S-20124, Loadguard SC2759, Volvo 85101155, Triangle 8435, Goodyear 1R12-375, Firestone W01-358-9265, and Contitech 9 10-19 P 435.

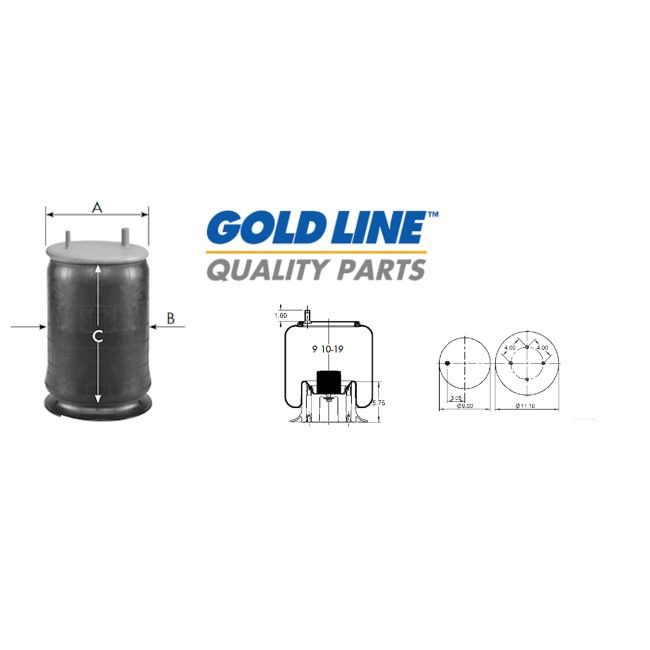

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 19"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: Hendrickson C20413, Hendrickson S-20124, Loadguard SC2759, Volvo 85101155, Triangle 8435, Goodyear 1R12-375, Firestone W01-358-9265, and Contitech 9 10-19 P 435.
Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 19"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 5640
Load @ 100 psi: 7070
Natural Frequency (cpm): 61
Min. Height: 7.3"
Max. Height: 24.6"
Max. Diameter: 12.6"
Load @ 100 psi: 7070
Natural Frequency (cpm): 61
Min. Height: 7.3"
Max. Height: 24.6"
Max. Diameter: 12.6"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2299265200
| Product Name | GOLD LINE Rolling Lobe Air Spring #G2299265200 |
|---|
