GOLD LINE Rolling Lobe Air Spring #G2299366200
Stock# 5351063
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: SAF-HOLLAND 9055716, SAF-HOLLAND 9055722, SAF-HOLLAND 9055721, Watson & Chalin AS-005, Triangle 8488, Goodyear 1R12-487, Firestone W01-358-9366 and Contitech 9 10-12 P 488.
SUPPLIES LIMITED
Special Price
$40.00
was
$127.50
SKU
5351063
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: SAF-HOLLAND 9055716, SAF-HOLLAND 9055722, SAF-HOLLAND 9055721, Watson & Chalin AS-005, Triangle 8488, Goodyear 1R12-487, Firestone W01-358-9366 and Contitech 9 10-12 P 488.

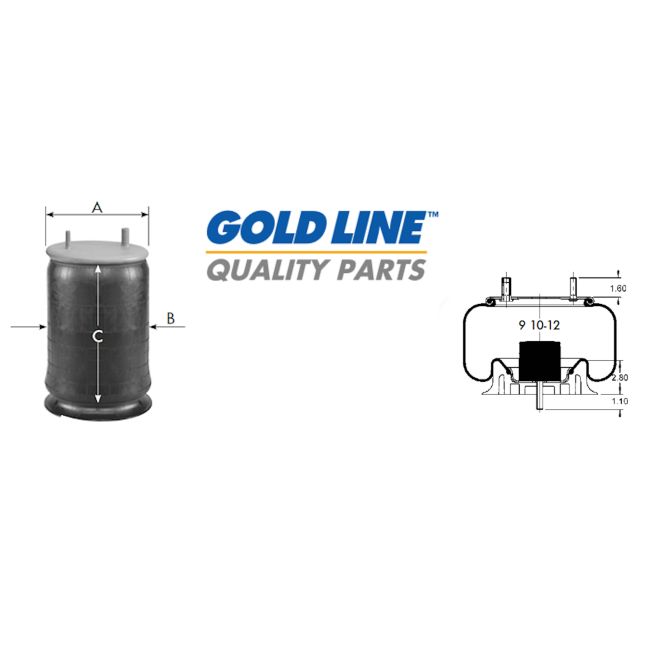

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 12"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: SAF-HOLLAND 9055716, SAF-HOLLAND 9055722, SAF-HOLLAND 9055721, Watson & Chalin AS-005, Triangle 8488, Goodyear 1R12-487, Firestone W01-358-9366 and Contitech 9 10-12 P 488.
Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 12"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 5640
Load @ 100 psi: 7050
Natural Frequency (cpm): 82
Min. Height: 5.4"
Max. Height: 15.5"
Max. Diameter: 12.6"
Load @ 100 psi: 7050
Natural Frequency (cpm): 82
Min. Height: 5.4"
Max. Height: 15.5"
Max. Diameter: 12.6"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2299366200
| Product Name | GOLD LINE Rolling Lobe Air Spring #G2299366200 |
|---|
